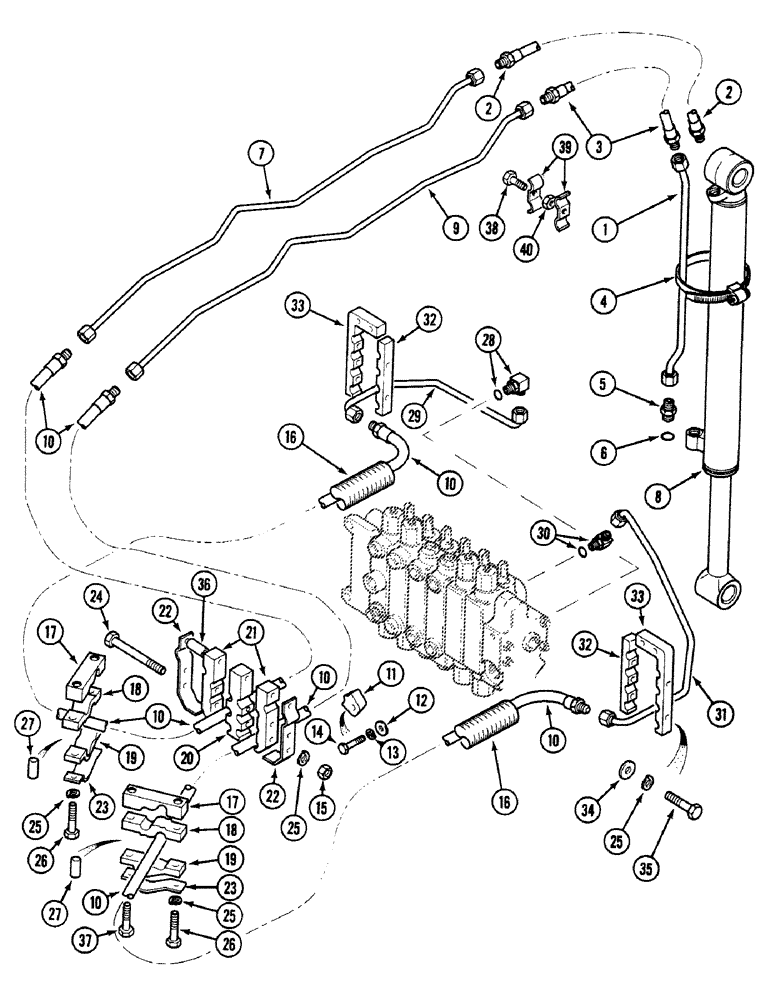

Запчасти Case 580SK (8-192) - HYDRAULIC CIRCUIT BUCKET CYLINDER, SIDESHIFT, NOT FOR PRESTIGE, S/N JJH0045481 AND UP (08) - HYDRAULICS

1

D141248

TUBE

1шт.

2

D140303

HOSE ASSY.

1шт.

3

D140302

HOSE

1шт.

4

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

E49850

PIPE

1шт.

8

1542920C1

CYLINDER ASSY.

, Serial Range: JJH0045481-JJH0046190

1шт.

8

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1542920C1

1шт.

8

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

8

110290A1

CYLINDER ASSY.

, Start Serial: JJH0046191

1шт.

8

235916A1R

REMAN-HYD CYLINDER

Reman New PN 110290A1

1шт.

8

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

9

E49851

PIPE

1шт.

10

E49979

HOSE

2шт.

11

112292A1

SHIN

CLAMP

2шт.

12

495-11034

WASHER,5/16", SAE

2шт.

13

492-11031

LOCK WASHER,5/16"

2шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

E49975

LOOM

SLEEVE

2шт.

17

120848A1

SHIN

CLAMP

2шт.

18

120849A1

SHIN

CLAMP

2шт.

19

120850A1

SHIN

CLAMP

2шт.

20

108271A1

SHIN

CLAMP, Serial Range: -JJH0047385

1шт.

20

130537A1

SHIN

CLAMP, Start Serial: JJH0047386

1шт.

21

108270A1

SHIN

CLAMP, Serial Range: -JJH0047385

2шт.

21

130536A1

SHIN

CLAMP, Start Serial: JJH0047386

2шт.

22

107993A1

SHIN

CLAMP, Serial Range: -JJH0047385

2шт.

22

130535A1

SHIN

CLAMP, Start Serial: JJH0047386

2шт.

23

120851A1

CLAMP

2шт.

24

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

3/8 x 138 mm

2шт.

25

492-11038

LOCK WASHER,3/8"

10шт.

26

413-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

3/8 x 51 mm

4шт.

27

120852A1

SPACER

4шт.

28

E49984

FITTING

ELBOW

1шт.

29

E55033

PIPE

1шт.

30

E49983

FITTING

ELBOW 90 deg

1шт.

31

E55038

PIPE

1шт.

32

120232A1

SHIN

CLAMP

2шт.

33

120233A1

SHIN

CLAMP

2шт.

34

495-21044

WASHER,3/8"

4шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

36

130441A1

SPACER

, Start Serial: JJH0047386

2шт.

37

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

38

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x25 mm

1шт.

39

D127681

CLAMP

1шт.

40

231-4116

NUT,3/8"-16, GB

3/8"

1шт.
