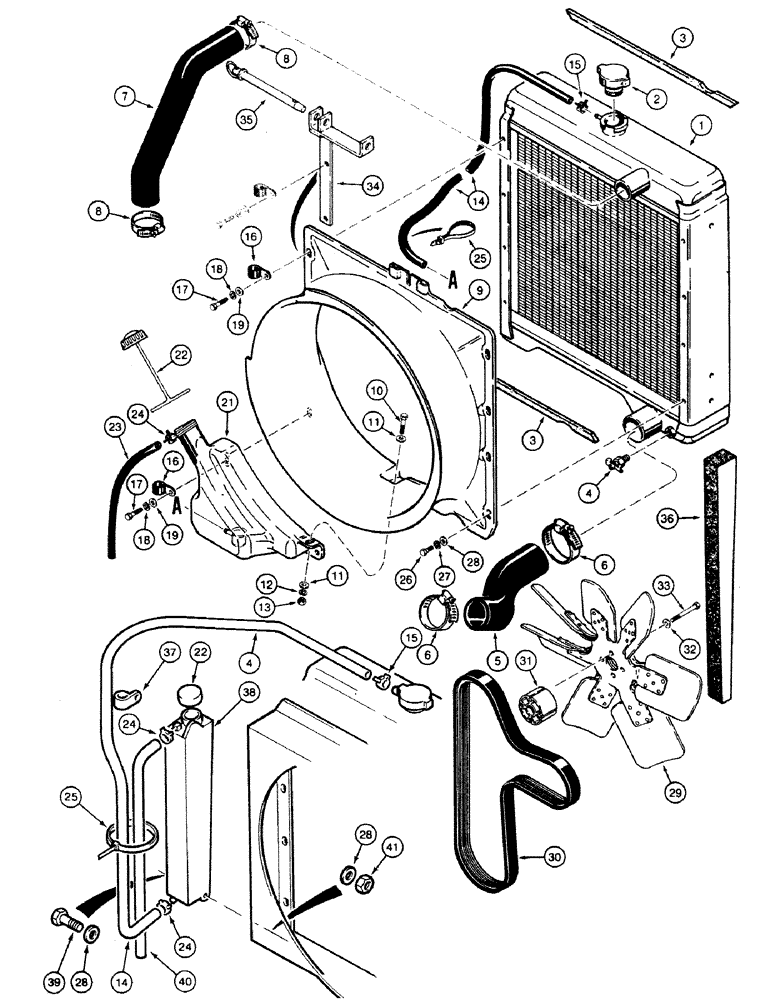

Запчасти Case 580SK (2-02) - RADIATOR, FAN AND MOUNTING PARTS (02) - ENGINE

1

A189481

RADIATOR

Radiator With air conditioning

1шт.

High Temperatures

1шт.

1

A172038

RADIATOR

Radiator Standard

1шт.

2

A170241

RADIATOR CAP

Filler, 15 psi

1шт.

3

A173165

SEALING STRIP

Seal Upper, Lower

2шт.

4

217-92

COCK

Valve

1шт.

5

D127775

RADIATOR HOSE,58.00 mm ID x 225.00 mm, SAE 20R4 Class C

Lower

1шт.

6

214-1444

HOSE CLAMP,58.6mm - 82.5mm

Lower

2шт.

7

D127774

RADIATOR HOSE,45.00 mm ID x 265.00 mm, SAE 20R4 Class C

Upper

1шт.

8

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Upper

2шт.

9

A173459

SHROUD

Shroud Standard

1шт.

9

D147078

SHROUD

Shroud

1шт.

High Temperatures

1шт.

10

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

11

495-21038

WASHER,5/16"

2шт.

12

492-11031

LOCK WASHER,5/16"

1шт.

13

825-1408

NUT,M8, Cl 8

1шт.

14

A171019

HOSE,7.5mm ID x 900mm L, SAE 30R6

1шт.

15

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

16

49838

CLAMP

2шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

18

492-11031

LOCK WASHER,5/16"

2шт.

19

495-21038

WASHER,5/16"

2шт.

21

A171805

RESERVOIR

1шт.

22

1547924C1

CAP

1шт.

23

A172262

HOSE,7.50 mm ID, 8.30 mm ID x 310.00 mm, SAE 30R6 per J30

1шт.

24

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

6шт.

27

492-11031

LOCK WASHER,5/16"

6шт.

28

495-21038

WASHER,5/16"

6шт.

29

A184467

FAN

1шт.

29

A189138

FAN

1шт.

High Temperatures

1шт.

30

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

1шт.

31

A189252

SPACER

1шт.

31

J942341

SLEWING RING

1шт.

High Temperatures

1шт.

32

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

33

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

33

814-10085

BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8

4шт.

High Temperatures

1шт.

34

E47184

SUPPORT

BRACKET

1шт.

35

D140855

PIN,15.88mm OD

1шт.

36

E47918

PANEL ASSY.

BAFFLE

2шт.

37

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

High Temperatures

1шт.

38

D148344

RESERVOIR

1шт.

High Temperatures

1шт.

39

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 32 mm

2шт.

High Temperatures

1шт.

40

D148394

HOSE

1шт.

High Temperatures

1шт.

41

231-1445

NUT,5/16"-18, GB

2шт.

High Temperatures

1шт.
