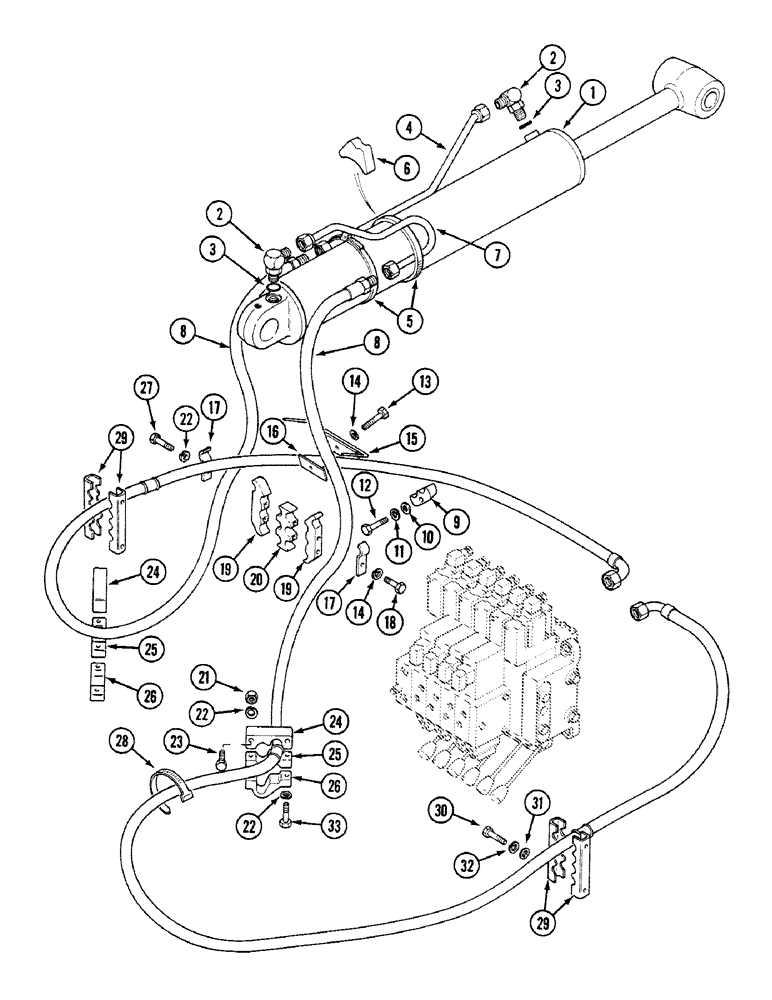

Запчасти Case 580SK (8-182) - HYDRAULIC CIRCUIT BOOM CYLINDER, PRESTIGE VERSION, SIDESHIFT BACKHOE (08) - HYDRAULICS

1

1346217C1

CYLINDER ASSY.

See Figure 8-368, Serial Range: -JJH0014064

1шт.

1

1542916C1

CYLINDER ASSY.

See Figure 8-370, Serial Range: JJH0014065-JJH0046126

1шт.

1

1543391C1

CYLINDER ASSY.

See Figure 8-370, Start Serial: JJH0046127

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

D141614

TUBE

1шт.

5

141502A1

CLAMP

2шт.

6

D38648

BLOCK

INSULATOR

2шт.

7

131709A1

PIPE

1шт.

8

E48341

HOSE

2шт.

9

112292A1

SHIN

CLAMP

2шт.

10

495-11034

WASHER,5/16", SAE

2шт.

11

492-11031

LOCK WASHER,5/16"

6шт.

12

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

D140105

BRACKET

1шт.

16

D135667

PLATE

1шт.

17

D143512

CLAMP

2шт.

18

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

19

D143513

SHIN

CLAMP

2шт.

20

D142471

SHIN

CLAMP

1шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

492-11038

LOCK WASHER,3/8"

12шт.

23

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

24

D139536

SHIN

CLAMP Upper

2шт.

24

D139537

CLAMP

Centre

2шт.

26

D139538

CLAMP

Lower

2шт.

27

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

28

D140236

STRAP

1шт.

29

D92721

CLAMP

4шт.

30

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

31

495-11053

WASHER,1/2", SAE

4шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

33

413-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

3/8 x 54 mm

4шт.
