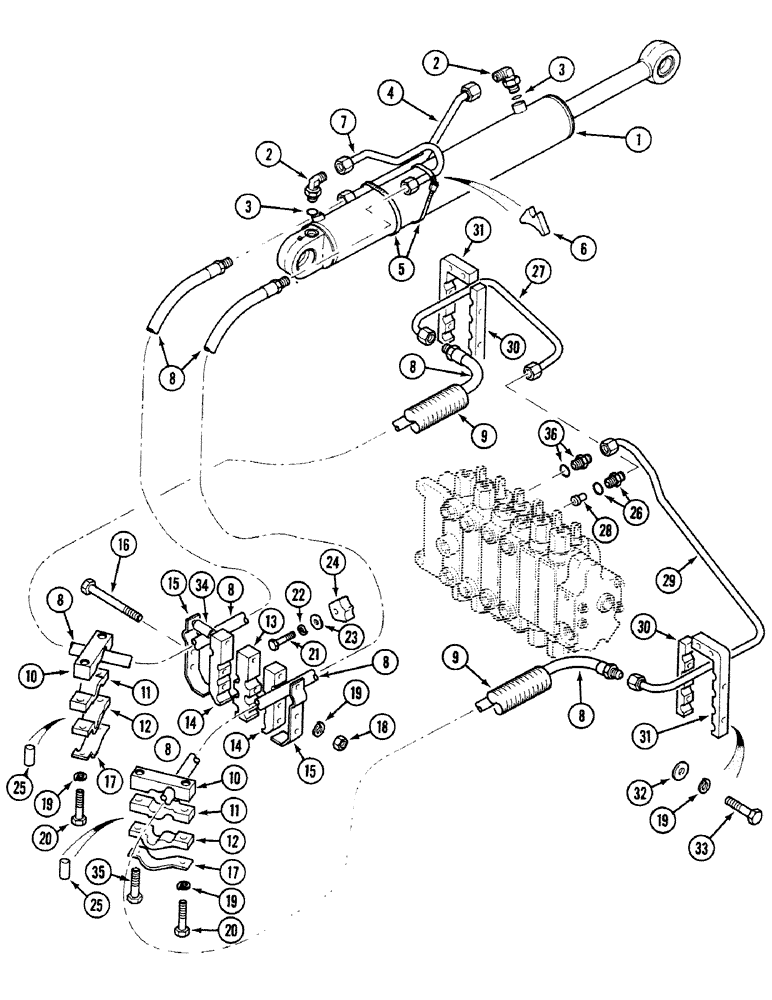

Запчасти Case 580SK (8-178) - HYDRAULIC CIRCUIT BOOM CYLINDER, NOT FOR PRESTIGE, S/N JJH0045481 AND UP, SIDESHIFT BACKHOE (08) - HYDRAULICS

1

1542916C1

CYLINDER ASSY.

, Serial Range: JJH0045481-JJH0046137

1шт.

1

1543391C1

CYLINDER ASSY.

, Start Serial: JJH0046138

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 3

2шт.

3

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

4

D141614

TUBE

1шт.

5

141502A1

CLAMP

2шт.

6

D38648

BLOCK

SPACER

2шт.

7

131709A1

PIPE

1шт.

8

E49978

HOSE

, Serial Range: -JJH0047385

2шт.

8

130440A1

HOSE

, Start Serial: JJH0047386

2шт.

9

E49975

LOOM

SLEEVE

2шт.

10

120848A1

SHIN

CLAMP

2шт.

11

120849A1

SHIN

CLAMP

2шт.

12

120850A1

SHIN

CLAMP

2шт.

13

108271A1

SHIN

CLAMP

1шт.

13

130537A1

SHIN

CLAMP, Start Serial: JJH0047386

1шт.

14

108270A1

SHIN

CLAMP, Serial Range: -JJH0047385

2шт.

14

130536A1

SHIN

CLAMP, Start Serial: JJH0047386

2шт.

15

107993A1

SHIN

CLAMP, Serial Range: -JJH0047385

2шт.

15

130535A1

SHIN

CLAMP, Start Serial: JJH0047386

2шт.

16

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

3/8 x 138 mm

2шт.

17

120851A1

CLAMP

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

492-11038

LOCK WASHER,3/8"

6шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

21

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

22

492-11031

LOCK WASHER,5/16"

2шт.

23

495-11034

WASHER,5/16", SAE

2шт.

24

112292A1

SHIN

CLAMP

2шт.

25

120852A1

SPACER

4шт.

26

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

27

E55037

PIPE

1шт.

28

D77182

FITTING

UNION

1шт.

29

E55039

PIPE

TUBE

1шт.

30

120232A1

SHIN

CLAMP

2шт.

31

120233A1

SHIN

CLAMP

2шт.

32

495-21044

WASHER,3/8"

4шт.

33

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3/8 x 38 mm

4шт.

34

130441A1

SPACER

, Start Serial: JJH0047386

2шт.

35

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

36

123621A1

FITTING

CONNECTOR

1шт.
