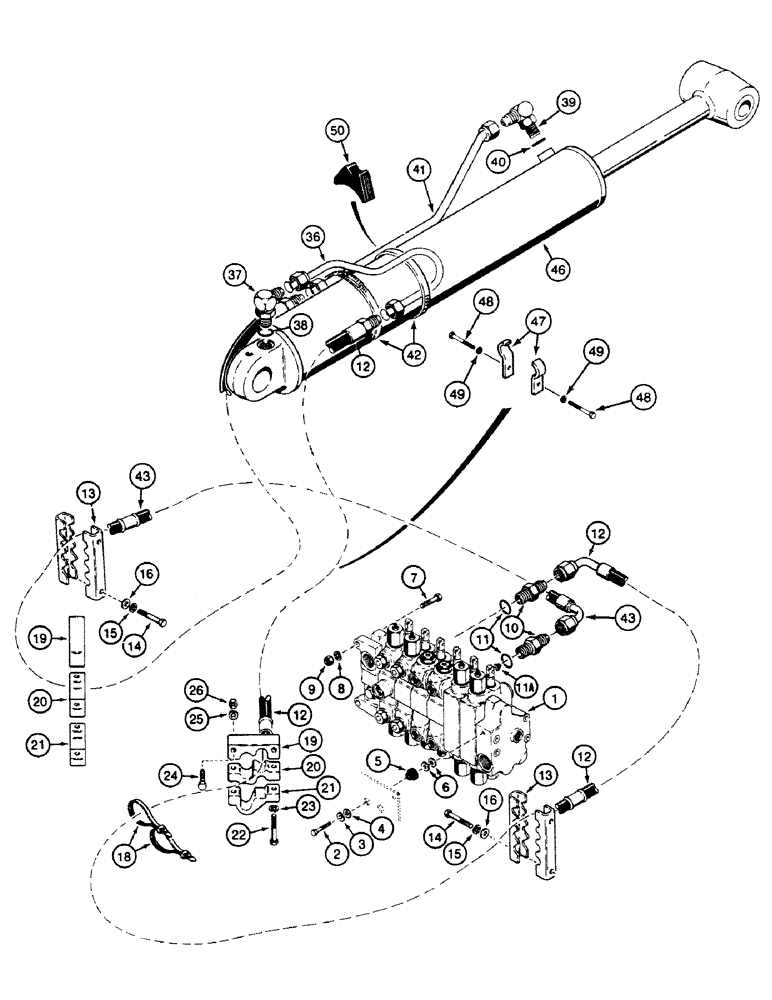

Запчасти Case 580SK (8-174) - HYDRAULIC CIRCUIT BOOM CYLINDER, NOT FOR PRESTIGE, UP TO S/N JJH0045480, SIDESHIFT BACKHOE (08) - HYDRAULICS

1

1340862C4

DISTRIBUTOR

VALVE ASSY See Figure 8-294

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

25/64"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11a

D142366

RESTRICTOR

1шт.

12

E48216

HOSE

1шт.

12

E48341

HOSE

SAE J1177

1шт.

13

D92721

CLAMP

2шт.

14

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

15

495-11053

WASHER,1/2", SAE

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

18

D140236

STRAP

8шт.

19

D139536

SHIN

CLAMP

2шт.

20

D139537

CLAMP

2шт.

21

D139538

CLAMP

2шт.

22

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

23

492-11038

LOCK WASHER,3/8"

4шт.

24

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

425-106

NUT,3/8"-16, Cl 5

4шт.

36

131709A1

PIPE

1шт.

37

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

39

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 40

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

41

D141614

TUBE

1шт.

42

141502A1

CLAMP

2шт.

43

E48217

HOSE

1шт.

43

E48341

HOSE

SAE J1177

1шт.

46

1346217C1

CYLINDER ASSY.

See Figure 8-368, Serial Range: -JJH0014064

1шт.

46

1542916C1

CYLINDER ASSY.

See Figure 8-370, Serial Range: JJH0014065-JJH0046137

1шт.

46

1543391C1

CYLINDER ASSY.

See Figure 8-370, Start Serial: JJH0046138

1шт.

47

D143512

CLAMP

2шт.

48

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

49

492-11031

LOCK WASHER,5/16"

4шт.

50

D38648

BLOCK

INSULATOR

1шт.
