(8-172) - HYDRAULIC CIRCUIT LOCKING VALVE, S/N JJH0045665 AND UP, ELECTRICAL

Запчасти Case 580SK (8-172) - HYDRAULIC CIRCUIT LOCKING VALVE, S/N JJH0045665 AND UP, ELECTRICAL (08) - HYDRAULICS

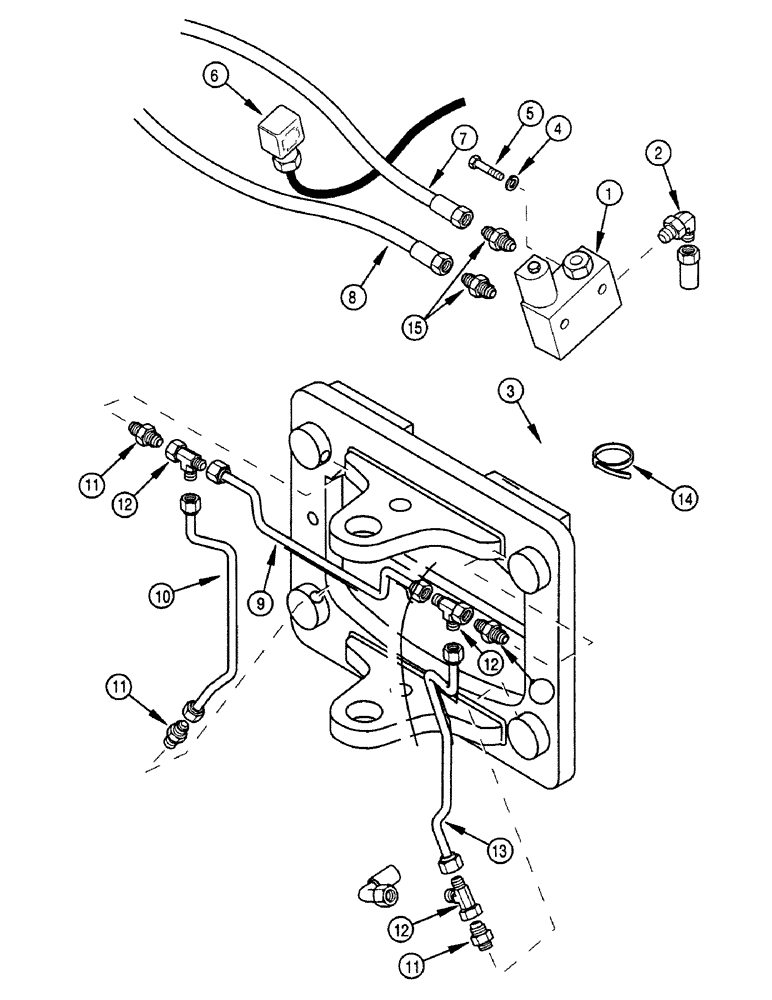

Схема запчастей Case 580SK - (8-172) - HYDRAULIC CIRCUIT LOCKING VALVE, S/N JJH0045665 AND UP, ELECTRICAL (08) - HYDRAULICS
2
13
5
12
11
9
3
1
6
8
12
15
10
4
14
11
12
7
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

110498A1

DISTRIBUTOR

VALVE ASSY

1шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Adapter

1шт.

3

114622A1

HOSE

ASSY

1шт.

4

492-11025

LOCK WASHER,1/4"

2шт.

5

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

3/8 x 63 mm

2шт.

6

119497A1

HARNESS

1шт.

7

114621A1

HOSE

ASSY

1шт.

8

114620A1

HOSE

ASSY

1шт.

9

E55086

PIPE

1шт.

10

E55084

PIPE

1шт.

11

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

4шт.

12

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

ADAPTER

3шт.

13

E55085

PIPE

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.
