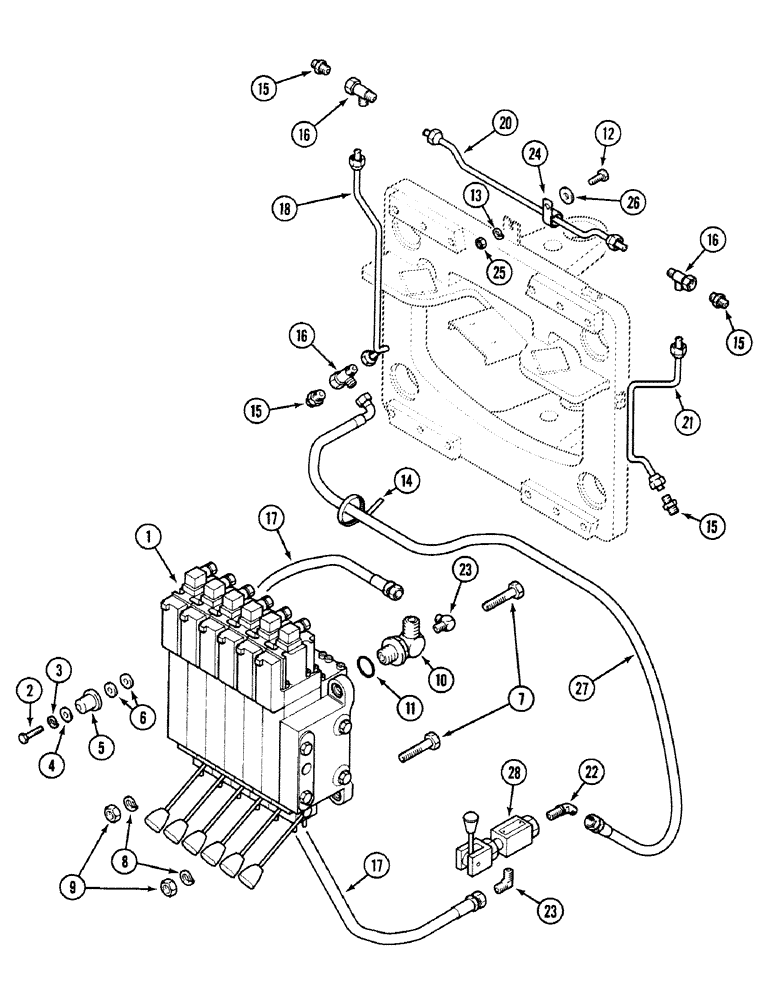

Запчасти Case 580SK (8-170) - HYDRAULIC CIRCUIT LOCKING VALVE, PRESTIGE VERSION, S/N JJH0045481 TO JJH0045664 (08) - HYDRAULICS

1

VALVE ASSY See Figure 8-076

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

25/64"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

13/32"

2шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

E49984

FITTING

ELBOW 90 deg With : 11

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

13

492-11031

LOCK WASHER,5/16"

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

15

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

4шт.

16

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

TEE

3шт.

17

D139888

HOSE

1шт.

18

E55085

PIPE

Right

1шт.

20

E55086

PIPE

Horizontal

1шт.

21

E55084

PIPE

Left

1шт.

22

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

ELBOW 45 deg

1шт.

23

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 deg

2шт.

24

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

25

425-105

NUT,5/16"-18, G5

1шт.

26

495-21038

WASHER,5/16"

1шт.

27

E49884

HOSE

ASSY

1шт.

28

E44929

COCK

VALVE ASSY See Figure 8-264

1шт.
