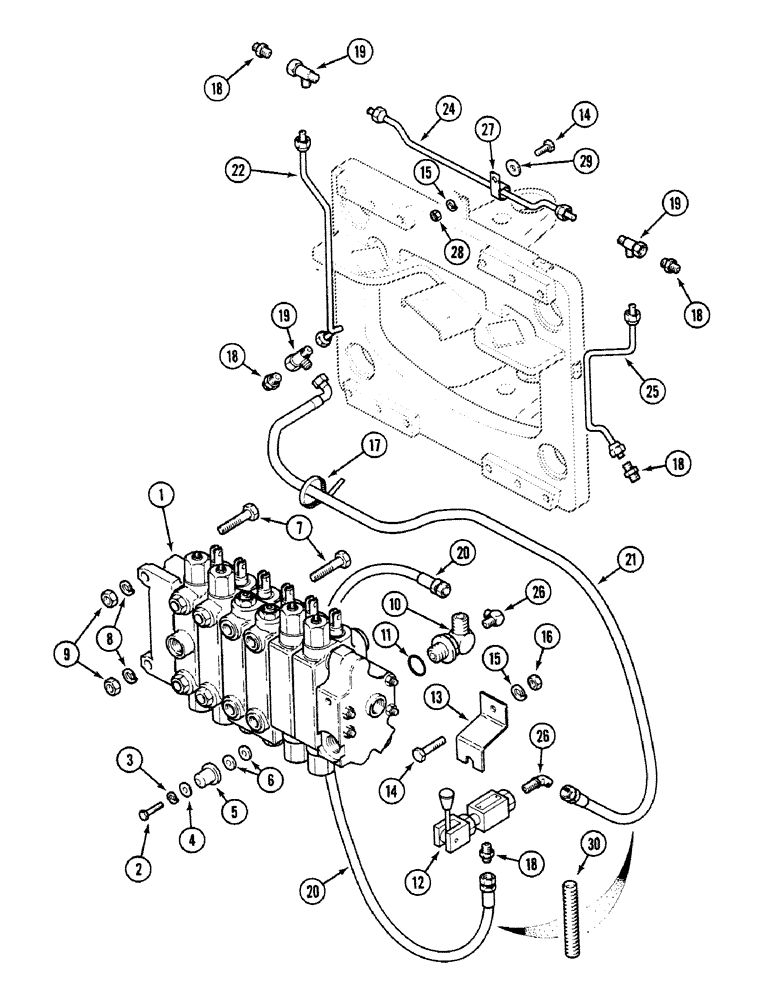

Запчасти Case 580SK (8-166) - LOCKING VALVE SIDESHIFT BACKHOE, NOT FOR PRESTIGE, S/N JJH0045481 TO JJH0045665 (08) - HYDRAULICS

1

VALVE ASSY See Figures 8-294, 8-296

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

25/64"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

13/32"

2шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

E49984

FITTING

90 deg With : 11

1шт.

11

O RING

1шт.

12

VALVE ASSY See Figure 8-264

1шт.

13

D139347

BRACKET

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

492-11031

LOCK WASHER,5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

18

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

4шт.

19

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

TEE

3шт.

20

D139888

HOSE

1шт.

21

E48899

HOSE

1шт.

22

E55085

PIPE

Right

1шт.

24

E55086

PIPE

Horizontal

1шт.

25

E55084

PIPE

Left

1шт.

26

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 deg

2шт.

27

49838

CLAMP

1шт.

28

425-105

NUT,5/16"-18, G5

1шт.

29

495-21038

WASHER,5/16"

1шт.

30

E47181

LOOM

SLEEVE

2шт.
