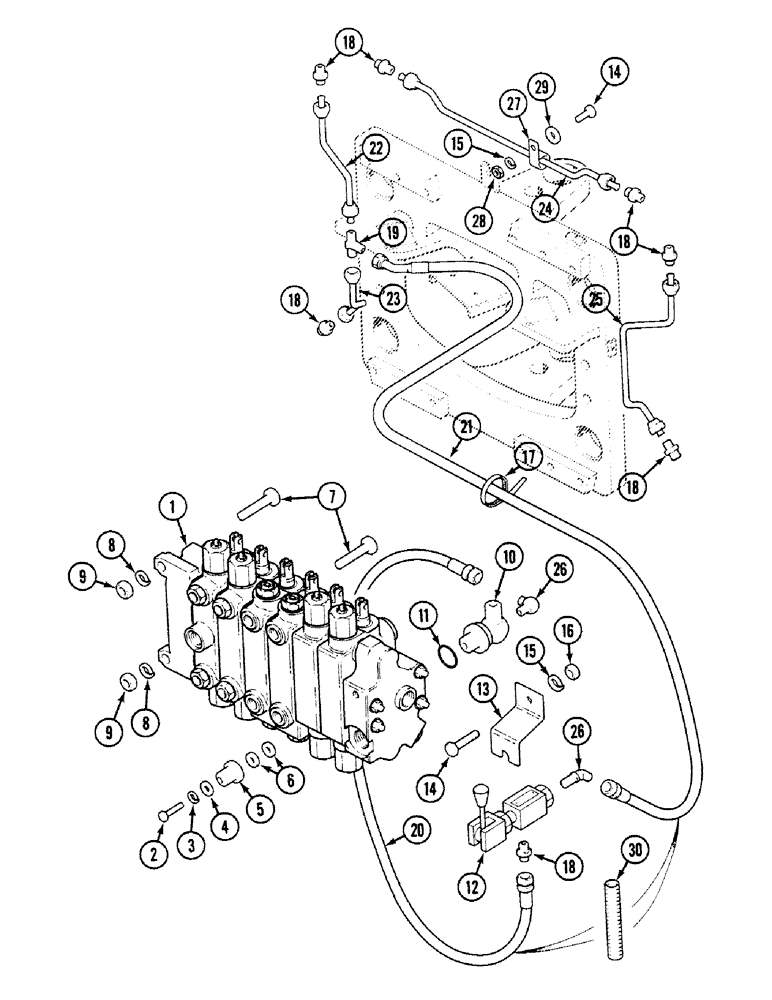

Запчасти Case 580SK (8-164) - LOCKING VALVE SIDESHIFT BACKHOE, NOT FOR PRESTIGE, UP TO S/N JJH0045480 (08) - HYDRAULICS

1

VALVE ASSY See Figure 8-294, 8-296

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

25/64"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

13/32"

2шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

D140242

FITTING

ELBOW 90 deg With : 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

VALVE ASSY See Figure 8-264

1шт.

13

D139347

BRACKET

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

492-11031

LOCK WASHER,5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

18

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

7шт.

19

218-591

TEE,7/16"-20, 37 Degree

TEE

1шт.

20

D139888

HOSE

1шт.

21

E48899

HOSE

1шт.

22

D144314

PIPE

Upper

1шт.

23

D139885

TUBE

Lower

1шт.

24

D143971

PIPE

Horizontal

1шт.

25

D143973

PIPE

Left

1шт.

26

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 deg

2шт.

27

49838

CLAMP

1шт.

28

425-105

NUT,5/16"-18, G5

1шт.

29

495-21038

WASHER,5/16"

1шт.

30

E47181

LOOM

SLEEVE

2шт.
