(8-162) - SWING SEQUENCE VALVE - SERVOPOWER VERSION, S/N JJH0046382 AND UP

Запчасти Case 580SK (8-162) - SWING SEQUENCE VALVE - SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

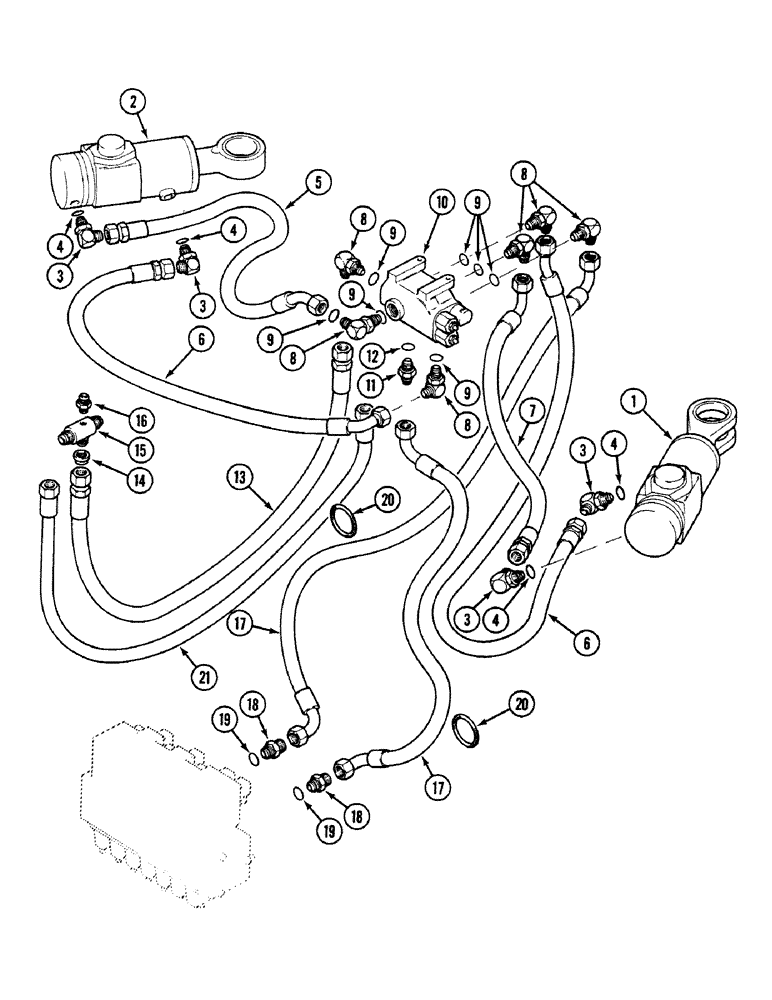

Схема запчастей Case 580SK - (8-162) - SWING SEQUENCE VALVE - SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS
2
3
7
14
8
9
16
9
3
9
12
3
18
3
4
4
6
13
4
9
17
19
4
8
18
11
17
10
8
19
9
21
15
6
5
20
20
8
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1542827C1

CYLINDER ASSY.

Right See Figure 8-366

1шт.

2

1542826C1

CYLINDER ASSY.

Left See Figure 8-366

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

With 4

4шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

114875A1

HOSE

1шт.

6

114876A1

HOSE

2шт.

7

114877A1

HOSE

1шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

With 9

6шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

1346067C1

VALVE

ASSY

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

With 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

114873A1

HOSE

, Serial Range: -JJH0047171

1шт.

14

E47425

RESTRICTOR

REDUCER Fitting, Serial Range: -JJH0047171

1шт.

15

E49957

FITTING

ADAPTER, Serial Range: -JJH0047171

1шт.

16

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

, Serial Range: -JJH0047171

1шт.

17

114872A1

HOSE

2шт.

18

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

121363A1

LOOM

PROTECTOR

2шт.

21

130862A1

HOSE

ASSY, Serial Range: -JJH0047171

1шт.
