(8-160) - SWING SEQUENCE VALVE, UP TO S/N JJH0046381, PRESTIGE VERSION

Запчасти Case 580SK (8-160) - SWING SEQUENCE VALVE, UP TO S/N JJH0046381, PRESTIGE VERSION (08) - HYDRAULICS

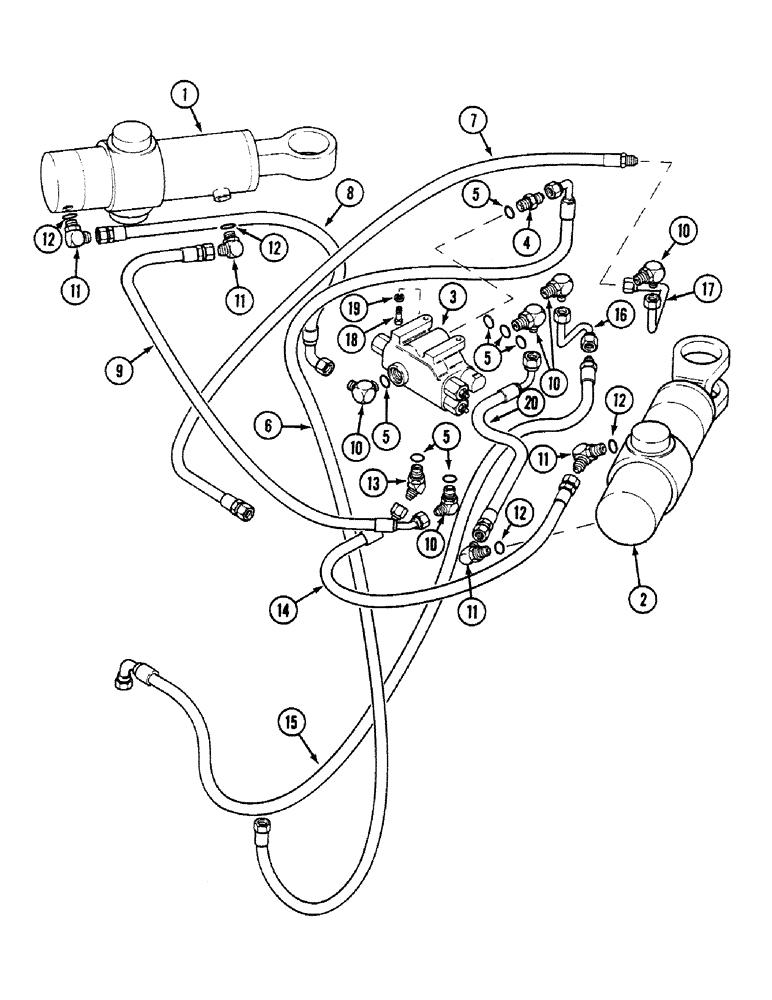

Схема запчастей Case 580SK - (8-160) - SWING SEQUENCE VALVE, UP TO S/N JJH0046381, PRESTIGE VERSION (08) - HYDRAULICS
11
11
5
12
15
10
18
11
16
12
17
20
14
5
2
5
1
12
11
4
12
5
13
3
9
8
10
7
10
6
10
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1542827C1

CYLINDER ASSY.

Right See Figure 8-366

1шт.

2

1542826C1

CYLINDER ASSY.

Left See Figure 8-366

1шт.

3

G109665

VALVE

See Figure 8-334

1шт.

4

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, with 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

E55025

HOSE

1700 mm

1шт.

7

D144040

HOSE

Upper

1шт.

8

E47718

HOSE

Left

1шт.

9

D139697

HOSE

410 mm Left

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

5шт.

11

E49721

FITTING

ELBOW With : 12

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ELBOW 45 deg

1шт.

14

D139699

HOSE

375 mm Right

1шт.

15

E55024

HOSE

1950 mm Lower

1шт.

16

D139931

TUBE

Lower

1шт.

17

D139929

TUBE

Upper

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

D139700

HOSE

825 mm Right

1шт.
