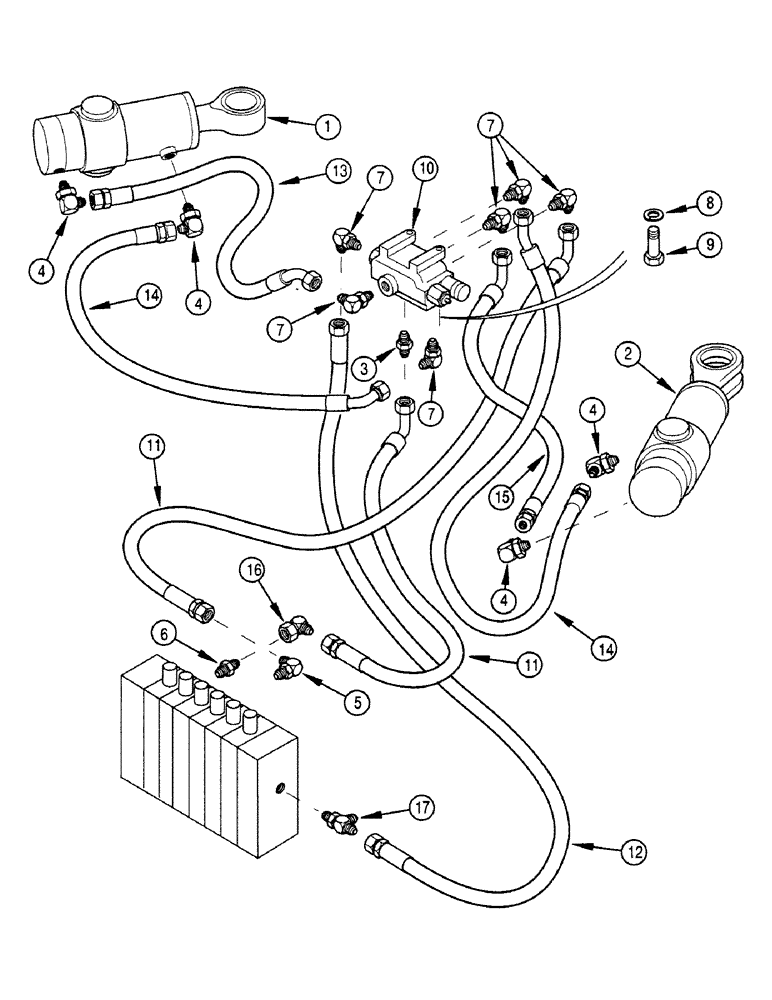

Запчасти Case 580SK (8-158) - HYDRAULIC CIRCUIT SWING CYLINDER, S/N JJH0045880 AND UP, NOT FOR PRESTIGE, SIDESHIFT BACKHOE (08) - HYDRAULICS

1

1542826C1

CYLINDER ASSY.

Right See Figure 8-366

1шт.

2

1542827C1

CYLINDER ASSY.

Left See Figure 8-366

1шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3шт.

5

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

1шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

1шт.

7

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

6шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

1346067C1

VALVE

See Figure 8-338

1шт.

11

123093A1

HOSE ASSY.

2шт.

12

123094A1

HYDRAULIC HOSE

1шт.

13

114875A1

HOSE

1шт.

14

114876A1

HOSE

2шт.

15

114877A1

HOSE

1шт.

16

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

17

119934A1

ELBOW

ELBOW

1шт.
