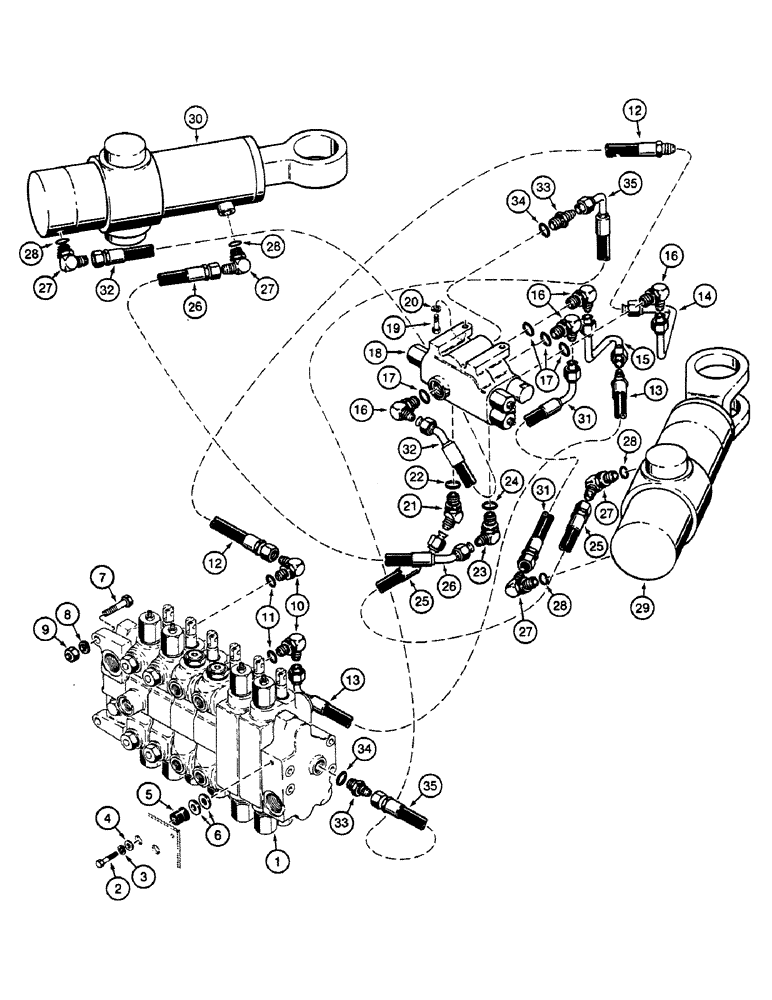

Запчасти Case 580SK (8-154) - HYDRAULIC CIRCUIT SWING CYLINDER, UP TO S/N JJH0045879, NOT FOR PRESTIGE, SIDESHIFT BACKHOE (08) - HYDRAULICS

1

VALVE ASSY See Figure 8-294, 8-296

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

7

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

With 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

D144040

HOSE

1700 mm Upper

1шт.

13

D144041

HOSE ASSY.

1950 mm Lower

1шт.

14

D139929

TUBE

Upper

1шт.

15

D139931

TUBE

Lower

1шт.

16

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

With 17

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

1346067C1

VALVE

ASSY See Figure 8-338

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ELBOW 45 deg With : 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

With 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

D139699

HOSE

Right

1шт.

26

D139697

HOSE

410mm Left

1шт.

27

E49721

FITTING

ELBOW 90 deg With : 28

4шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

1542827C1

CYLINDER ASSY.

Right See Figure 8-366

1шт.

30

1542826C1

CYLINDER ASSY.

Left See Figure 8-366

1шт.

31

D139700

HOSE

825 mm Right

1шт.

32

D139698

HOSE

720 mm Left

1шт.

33

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, with 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

D141932

HOSE

1700 mm

1шт.

33

119934A1

ELBOW

TEE Lock, Start Serial: JJH0045666

1шт.
