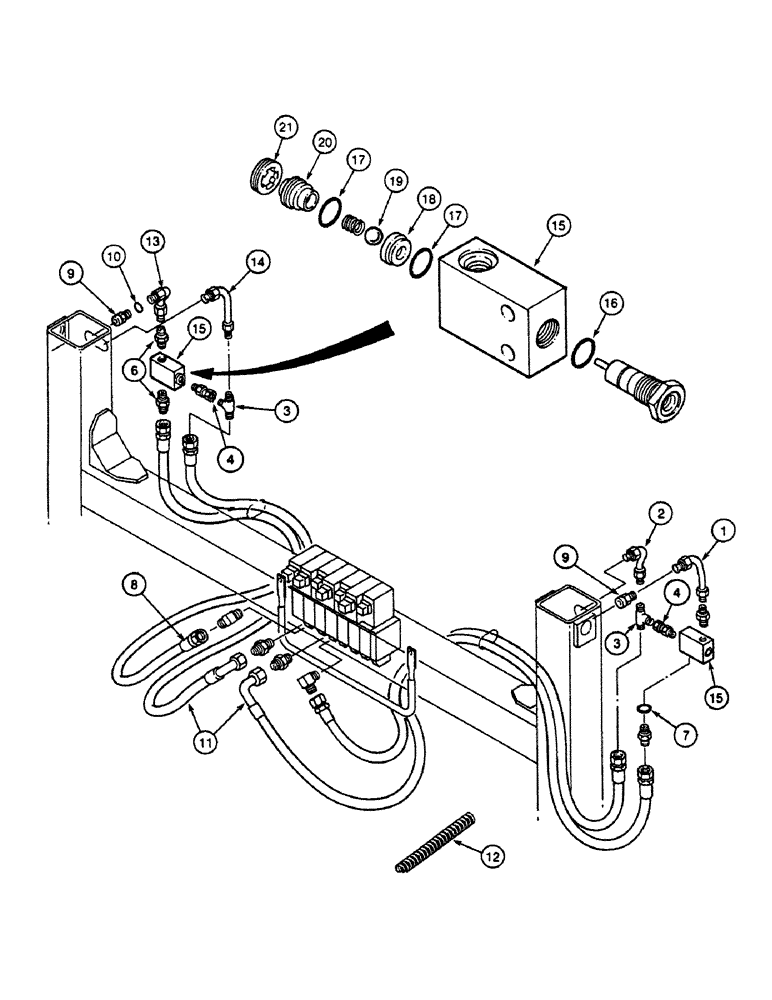

Запчасти Case 580SK (8-152) - SIDESHIFT BACKHOE STABILIZER CYLINDER, S/N JJH0049648 AND UP, VERSION W/ LOAD HOLDING VALVE (08) - HYDRAULICS

1

143831A1

TUBE

1шт.

2

143830A1

TUBE

1шт.

3

218-1582

TEE,37 Degree, 3/4"-16 x 7/16"-20, Br

TEE

2шт.

4

143829A1

ADAPTER,7/16" - 20 x 7/16" - 20 ORB

ADAPTER

2шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adaptor with 7

4шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

117693A1

HOSE

Servo Version

1шт.

8

D143180

HOSE ASSY.

Standard

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Servo Version with 10

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

117694A1

HOSE

Servo Version

1шт.

12

E45604

LOOM

SLEEVE Servo Version

4шт.

13

143925A1

TUBE

1шт.

14

143832A1

TUBE

1шт.

143833A1

VALVE POPPET

ASSY Consists Of : 15 - 21 See Figure 8-068

2шт.

15

BODY

1шт.

197751A1

PACKAGE

KIT Consists Of : 16 - 21

1шт.

16

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

17

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

18

SEAT

1шт.

19

BALL

1шт.

20

CAP

1шт.

21

SCREW

1шт.
