(8-150) - SIDESHIFT BACKHOE STABILIZER CYLINDER, UP TO S/N JJH0049647, VERSION W/ LOAD HOLDING VALVE

Запчасти Case 580SK (8-150) - SIDESHIFT BACKHOE STABILIZER CYLINDER, UP TO S/N JJH0049647, VERSION W/ LOAD HOLDING VALVE (08) - HYDRAULICS

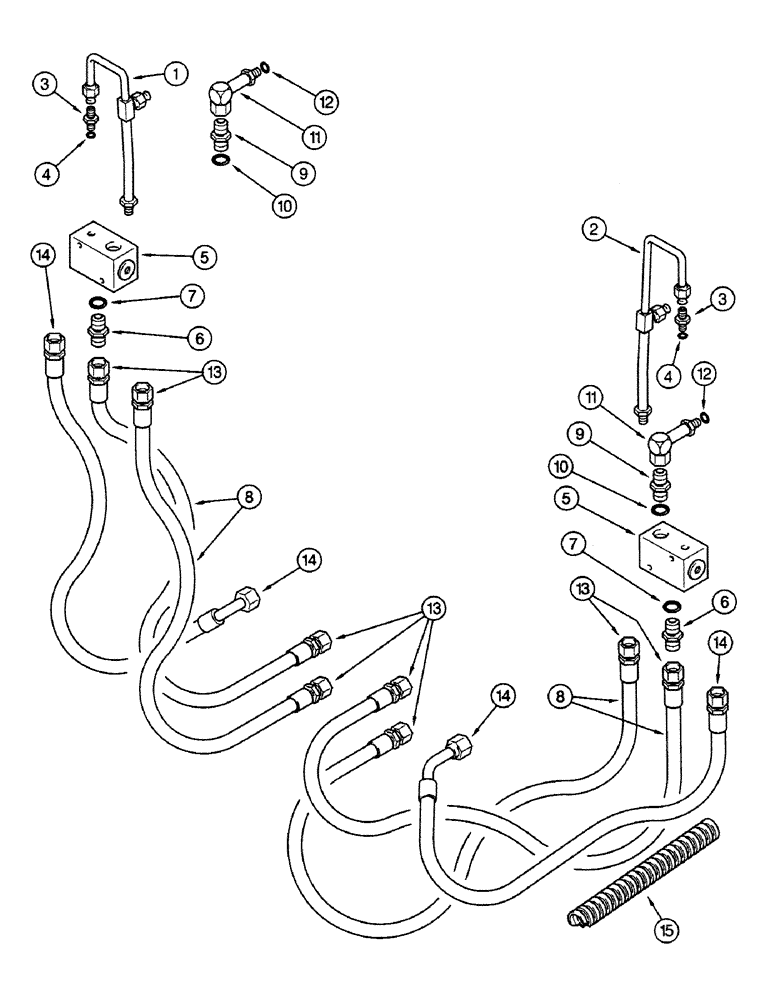

Схема запчастей Case 580SK - (8-150) - SIDESHIFT BACKHOE STABILIZER CYLINDER, UP TO S/N JJH0049647, VERSION W/ LOAD HOLDING VALVE (08) - HYDRAULICS
6
11
9
14
2
10
4
7
12
13
8
11
13
3
6
12
5
14
1
4
14
15
3
13
10
8
14
9
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E45732

TUBE

Left

1шт.

2

E45731

TUBE

Right

1шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER, with 4

2шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

113911A1

VALVE POPPET

ASSY See Figure 8-068, 8-350

2шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adaptor with 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

D143180

HOSE ASSY.

1825 mm

4шт.

8

D143180

HOSE ASSY.

1825 mm Prestige Version, Serial Range: -JJH0046381

4шт.

9

E45956

CONNECTOR, ELEC

CONNECTOR ADAPTER With : 10

2шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

D120756

ELBOW

90 deg With : 12

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

117693A1

HOSE

ASSY 1635 mm Servo Version, Serial Range: JJH0046382-JJJ0049647

2шт.

14

117694A1

HOSE

ASSY 1745 mm Servo Version, Serial Range: JJH0046382-JJJ0049647

2шт.

15

E45604

LOOM

SLEEVE Servo Version, Serial Range: JJH0046382-JJJ0049647

4шт.
