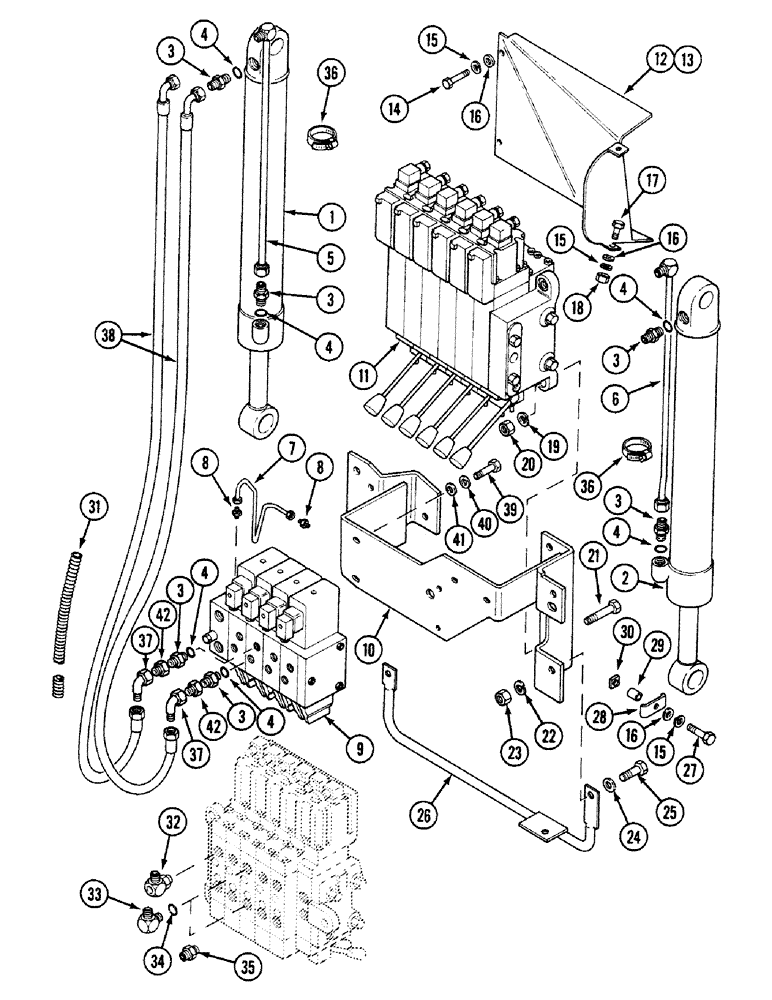

Запчасти Case 580SK (8-142) - SIDESHIFT BACKHOE STABILIZER CYLINDER, UP TO S/N JJH0046381, PRESTIGE VERSION (08) - HYDRAULICS

1

G101352

CYLINDER ASSY.

Left See Figure 8-292

1шт.

2

G101353

CYLINDER ASSY.

Right See Figure 8-292

1шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, with 4

8шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

D76597

TUBE,12 mm OD x 15, 642.8 mm L

Left

1шт.

6

D76595

TUBE,12 mm OD x 15, 642.8 mm L

Right

1шт.

7

E47462

PIPE ASSY.

1шт.

8

218-5088

HYD CONNECTOR,7/16" - 20 Male JIC x 1/2" - 20 Male ORB

ADAPTER

2шт.

9

E47294

DISTRIBUTOR

VALVE

1шт.

10

E47360

SUPPORT

1шт.

11

E47748

VALVE, CONTROL

ASSY

1шт.

12

134592A1

PROTECTOR

GUARD Right

1шт.

13

134593A1

PROTECTOR

GUARD Left

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

15

492-11038

LOCK WASHER,3/8"

12шт.

16

495-21044

WASHER,3/8"

(7/16")

9шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

7шт.

18

425-106

NUT,3/8"-16, Cl 5

6шт.

19

492-11062

BEARING WASHER,5/8"

3шт.

20

425-1010

NUT,5/8"-11, G5

3шт.

21

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

23

425-108

NUT,1/2" - 13, Gr 5

5шт.

24

495-21056

WASHER,1/2"

9/16"

7шт.

25

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

26

E49620

HOSE PROTECTION

GUARD

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

28

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

29

D76210

SPACER

2шт.

30

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

31

E45604

LOOM

SLEEVE

4шт.

32

E47746

FITTING

ELBOW 90 deg

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 34

2шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Adapter

5шт.

36

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

37

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

4шт.

38

D141929

HOSE

1975 mm

4шт.

39

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

40

492-11031

LOCK WASHER,5/16"

4шт.

41

495-21038

WASHER,5/16"

Right

4шт.

42

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

RESTRICTOR

2шт.
