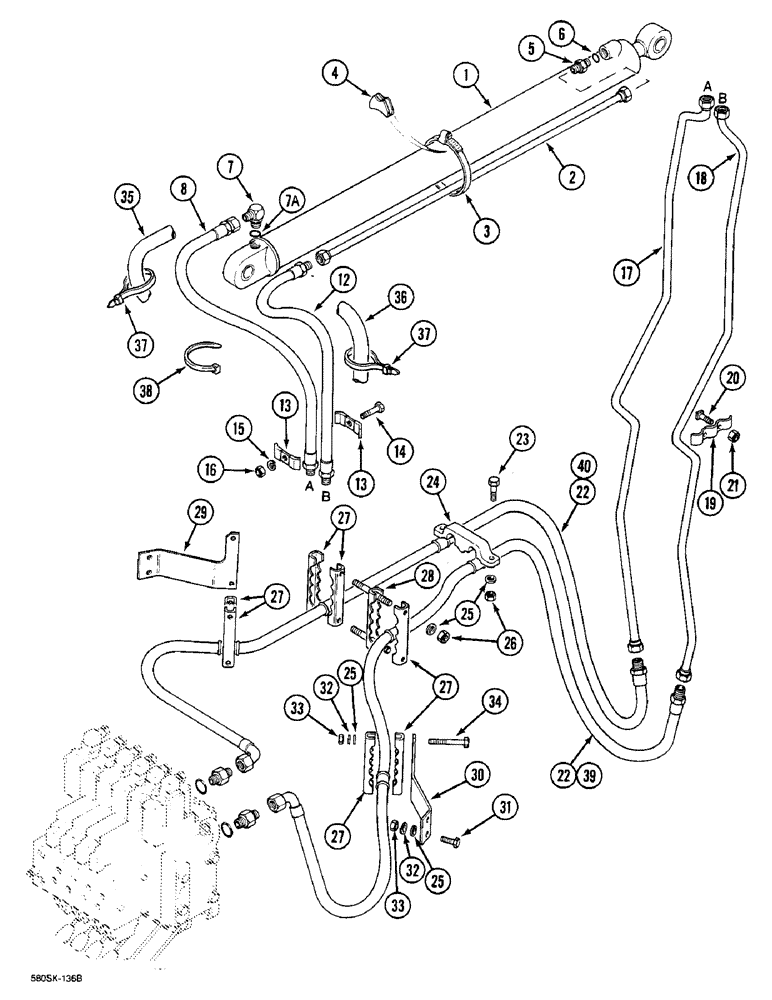

Запчасти Case 580SK (8-134) - HYDRAULIC CIRCUIT EXTENDABLE DIPPER CYLINDER, PRESTIGE/SERVOPOWER VERSION, INTEGRAL BACKHOE (08) - HYDRAULICS

1

1340969C1

CYLINDER ASSY.

See Figure 8-380

1шт.

2

D140706

PIPE

1шт.

3

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

4

D38648

BLOCK

INSULATOR

1шт.

5

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER With : 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 7A

1шт.

7a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

E48336

HOSE

, Serial Range: -JJH0015320

1шт.

8

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

12

E48335

HOSE

, Serial Range: -JJH0015320

1шт.

12

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

13

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

14

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

E49976

PIPE

1шт.

18

E49977

PIPE

1шт.

19

D127682

CLAMP

4шт.

20

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 25 mm

8шт.

21

231-4116

NUT,3/8"-16, GB

3/8"

8шт.

22

E48524

HOSE

, Serial Range: -JJH0046381

2шт.

23

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 76 mm

2шт.

24

D127250

CLAMP

17/32"

1шт.

25

495-11053

WASHER,1/2", SAE

14шт.

26

231-1448

NUT,1/2"-13, GB

6шт.

27

D92721

CLAMP

7шт.

28

D140552

CLAMP

1шт.

29

D140031

BRACKET

, Serial Range: -JJH0046381

1шт.

29

D140030

BRACKET

, Start Serial: JJH0046382

1шт.

30

D140030

BRACKET

, Serial Range: -JJH0046381

1шт.

30

D140031

BRACKET

, Start Serial: JJH0046382

1шт.

31

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

33

425-108

NUT,1/2" - 13, Gr 5

8шт.

34

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2 x 89 mm

4шт.

35

D134729

SLEEVE

1шт.

36

D134728

TUBE

SLEEVE

1шт.

37

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

38

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP, Start Serial: JJH0046382

1шт.

39

112979A1

HOSE

, Start Serial: JJH0046382

1шт.

40

112976A1

HOSE

, Start Serial: JJH0046382

1шт.
