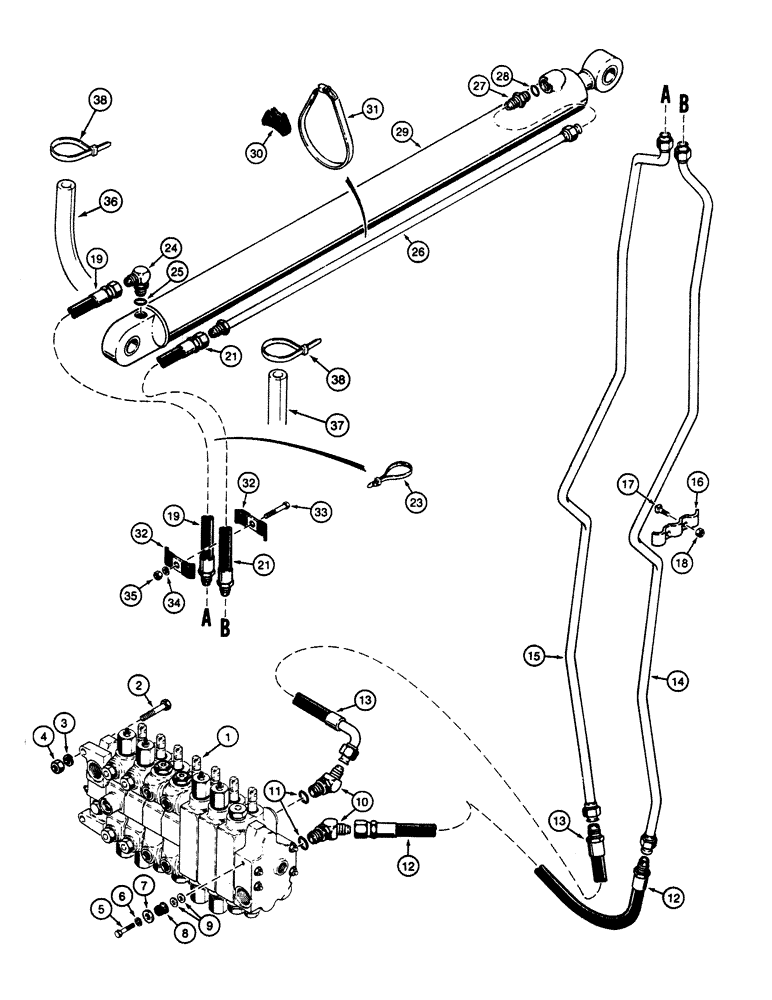

Запчасти Case 580SK (8-130) - HYDRAULIC CIRCUIT EXTENDABLE DIPPER, NOT FOR PRESTIGE (08) - HYDRAULICS

1

VALVE ASSY See Figures 8-294, 8-296

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

2шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR

1шт.

9

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

With 11

2шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

E48530

HOSE

, Serial Range: -JJH0046381

1шт.

12

112979A1

HOSE

, Start Serial: JJH0046382

1шт.

13

E48520

HOSE

, Serial Range: -JJH0046381

1шт.

13

112976A1

HOSE

, Start Serial: JJH0046382

1шт.

14

E49977

PIPE

1шт.

14a

E47976

PIPE

Right

1шт.

Version with Auxiliary Hydraulic Option Attachments

1шт.

15

E49976

PIPE

1шт.

15a

E47978

PIPE

Left

1шт.

Version with Auxiliary Hydraulic Option Attachments

1шт.

16

D143420

CLAMP

4шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3/8 x 25 mm

8шт.

18

425-106

NUT,3/8"-16, Cl 5

8шт.

19

E48336

HOSE

, Serial Range: -JJH0015320

1шт.

19

D134095

HOSE,12.7mm ID x 700mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

21

E48335

HOSE

, Serial Range: -JJH0015320

1шт.

21

D140708

HOSE,12.7mm ID x 850mm L, SAE 100R2

, Start Serial: JJH0015321

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D140706

PIPE

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

1340969C1

CYLINDER ASSY.

See Figure 8-380

1шт.

30

D38648

BLOCK

INSULATOR Rubber

1шт.

31

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

32

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

33

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3/8 x 51 mm

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

D134728

TUBE

SLEEVE

1шт.

37

D134729

SLEEVE

1шт.

38

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
