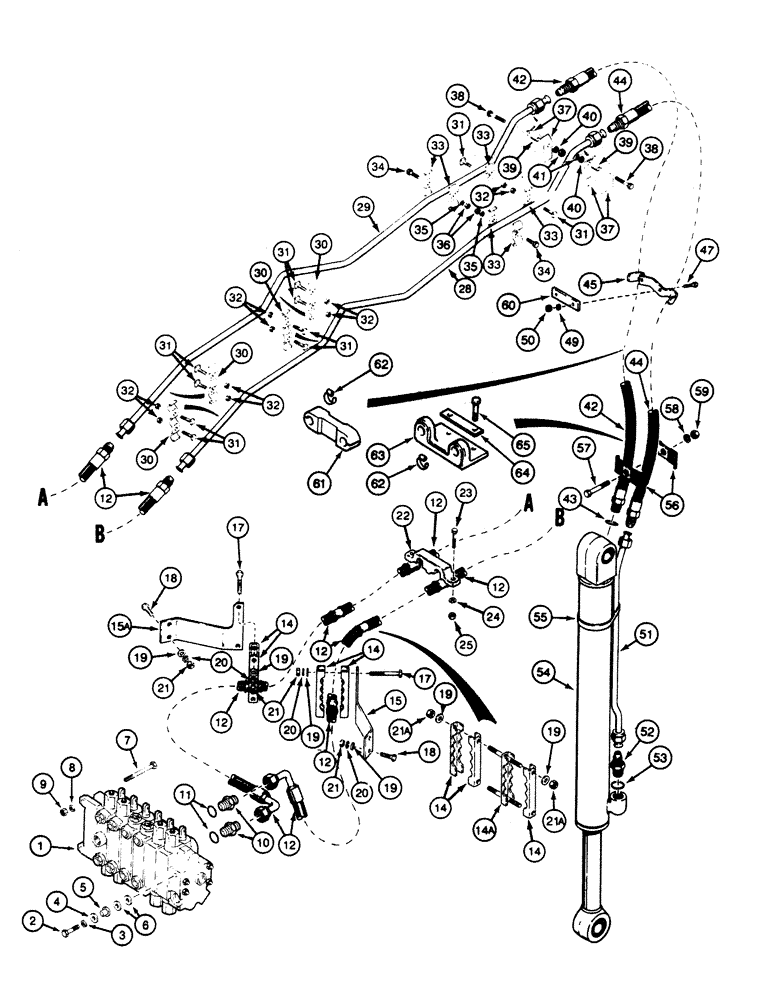

Запчасти Case 580SK (8-124) - HYDRAULIC CIRCUIT BUCKET CYLINDER, INTEGRAL BACKHOE, WITH EXTENDABLE DIPPER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1340862C4
DISTRIBUTOR
VALVE ASSY See Figure 8-294
1шт.
2
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
3
492-11038
LOCK WASHER,3/8"
1шт.
4
D52275
WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk
3/8"
1шт.
5
D52276
ISOLATOR,10.16mm ID x 28.07mm OD x mm L
CUSHION
1шт.
6
495-81266
WASHER,0.41" ID x 0.88" OD x 0.07" Thk
13/32"
2шт.
7
413-836
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
2шт.
8
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
9
425-108
NUT,1/2" - 13, Gr 5
2шт.
10
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER With : 11
2шт.
11
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
12
E48524
HOSE
1525 mm, Start Serial: JJH0047420
2шт.
12
E48524
HOSE
1525 mm Right, Serial Range: -JJH0047421
1шт.
12
112977A1
HOSE
Left, Serial Range: -JJH0047421
1шт.
14
D92721
CLAMP
7шт.
14a
D140552
CLAMP
With Studs
1шт.
15
D140030
BRACKET
Right
1шт.
15a
D140031
BRACKET
Left
1шт.
17
413-856
BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5
1/2 x 89 mm
4шт.
18
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
4шт.
19
495-11053
WASHER,1/2", SAE
12шт.
20
80679
LOCK WASHER,1/20.507 CST ZND
8шт.
21
425-108
NUT,1/2" - 13, Gr 5
8шт.
21a
231-1448
NUT,1/2"-13, GB
4шт.
22
D127250
CLAMP
1шт.
23
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1/2 x 76 mm
2шт.
24
495-11053
WASHER,1/2", SAE
2шт.
25
231-1448
NUT,1/2"-13, GB
2шт.
28
D138057
TUBE
Right
1шт.
29
D138059
TUBE
Left
1шт.
30
D127682
CLAMP
4шт.
31
417-616
BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2
3/8 x 25 mm
8шт.
32
231-4116
NUT,3/8"-16, GB
3/8"
8шт.
33
D127681
CLAMP
6шт.
34
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
35
492-11038
LOCK WASHER,3/8"
2шт.
36
425-106
NUT,3/8"-16, Cl 5
2шт.
37
D136678
CLAMP
4шт.
38
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
39
D76210
SPACER
3/8"
2шт.
40
492-11038
LOCK WASHER,3/8"
2шт.
41
425-106
NUT,3/8"-16, Cl 5
2шт.
42
E49914
HOSE
With : 43, Start Serial: JJH0047420
1шт.
42
134915A1
HYDRAULIC HOSE
, Serial Range: -JJH0047421
1шт.
43
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
, Start Serial: JJH0047420
1шт.
44
E49913
HOSE
, Start Serial: JJH0047420
1шт.
44
134916A1
HYDRAULIC HOSE
, Serial Range: -JJH0047421
1шт.
45
D140221
CLAMP
, Start Serial: JJH0047420
1шт.
47
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
3/8 x 38 mm, Start Serial: JJH0047420
2шт.
49
492-11038
LOCK WASHER,3/8"
, Start Serial: JJH0047420
2шт.
50
425-106
NUT,3/8"-16, Cl 5
, Start Serial: JJH0047420
2шт.
51
D141248
TUBE
1шт.
52
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
With 53
1шт.
53
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
54
1340991C1
CYLINDER ASSY.
See Figure 8-376
1шт.
54
235916A1R
REMAN-HYD CYLINDER
Reman New PN 1340991C1
1шт.
54
235916A1C
CORE-HYD CYLINDER
Return Number
1шт.
54
1542920C1
CYLINDER ASSY.
See Figure 8-378
1шт.
54
235916A1R
REMAN-HYD CYLINDER
Reman New PN 1542920C1
1шт.
54
235916A1C
CORE-HYD CYLINDER
Return Number
1шт.
54
110290A1
CYLINDER ASSY.
See Figure 8-378
1шт.
54
235916A1R
REMAN-HYD CYLINDER
Reman New PN 110290A1
1шт.
54
235916A1C
CORE-HYD CYLINDER
Return Number
1шт.
55
214-1472
HOSE CLAMP,#72, 4.06" - 5", Type F Worm
1шт.
56
D120614
CLAMP,25mm W x 68mm L x 9mm Thk
, Start Serial: JJH0047420
2шт.
57
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
, Start Serial: JJH0047420
1шт.
58
492-11038
LOCK WASHER,3/8"
, Start Serial: JJH0047420
1шт.
59
425-106
NUT,3/8"-16, Cl 5
, Start Serial: JJH0047420
1шт.
60
E55010
LARGE PLATE
PLATE, LARGE
1шт.
61
103670A1
CLAMP,27mm ID
, Serial Range: -JJH0047421
1шт.
62
214-1428
HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm
Collar, Serial Range: -JJH0047421
4шт.
63
103270A1
SHIN
CLAMP, Serial Range: -JJH0047421
1шт.
64
101479A1
SUPPORT
, Serial Range: -JJH0047421
1шт.
65
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
3/8 x 38 mm, Serial Range: -JJH0047421
4шт.
Выбрано товаров: 74
