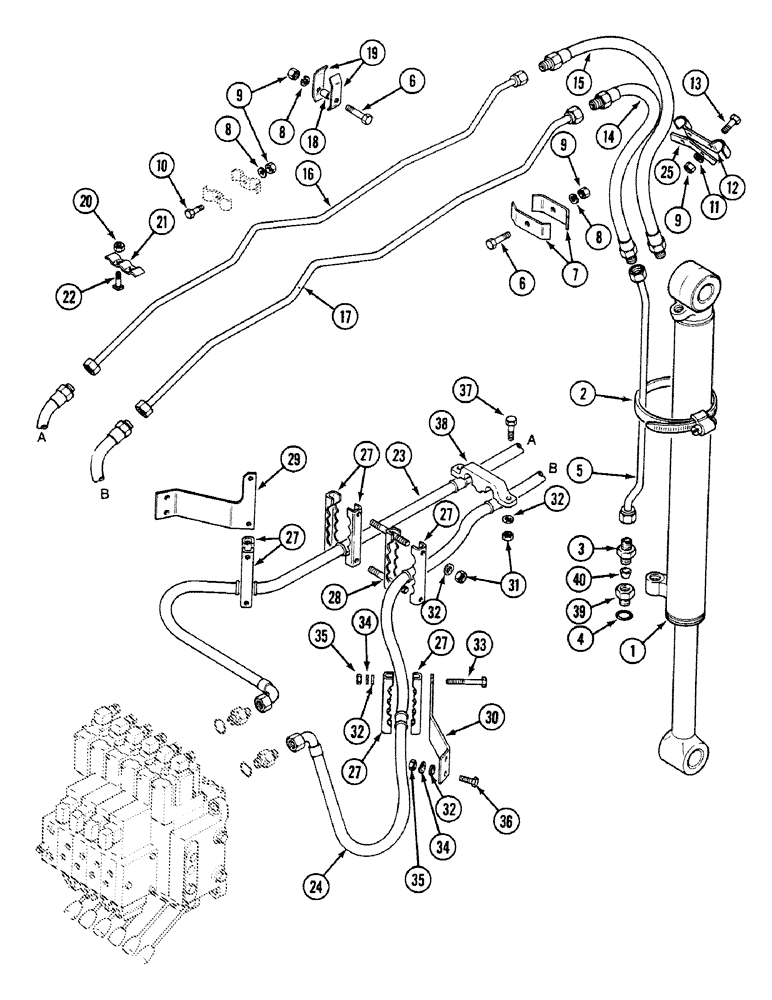

Запчасти Case 580SK (8-112) - HYDRAULIC CIRCUIT BUCKET CYLINDER, PRESTIGE/SERVOPOWER VERSION, INTEGRAL BACKHOE (08) - HYDRAULICS

1

1340991C1

CYLINDER ASSY.

See Figure : 8-376, Serial Range: -JJH0014399

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1340991C1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

1542920C1

CYLINDER ASSY.

See Figure : 8-378, Serial Range: JJH0014400-JJH0046190

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1542920C1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

110290A1

CYLINDER ASSY.

See Figure : 8-378, Start Serial: JJH0046191

1шт.

1

235916A1R

REMAN-HYD CYLINDER

Reman New PN 110290A1

1шт.

1

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

E48677

HYD TUBE

1шт.

6

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

7

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

8

492-11038

LOCK WASHER,3/8"

5шт.

9

425-106

NUT,3/8"-16, Cl 5

7шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

D140221

CLAMP

1шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8 x 38 mm

2шт.

14

E49913

HOSE

1шт.

15

E49914

HOSE

1шт.

16

D138059

TUBE

Left

1шт.

17

D138057

TUBE

Right

1шт.

18

D76210

SPACER

2шт.

19

D136678

CLAMP

4шт.

20

231-4116

NUT,3/8"-16, GB

3/8"

4шт.

21

D127682

CLAMP

4шт.

22

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 25 mm

4шт.

23

E48520

HOSE

, Serial Range: -JJH0046381

1шт.

23

112977A1

HOSE

, Start Serial: JJH0046382

1шт.

24

E48524

HOSE

1шт.

25

E55010

LARGE PLATE

PLATE, LARGE

1шт.

27

D92721

CLAMP

7шт.

28

D140552

CLAMP

1шт.

29

D140031

BRACKET

, Serial Range: -JJH0046381

1шт.

29

D140030

BRACKET

, Start Serial: JJH0046382

1шт.

30

D140030

BRACKET

, Serial Range: -JJH0046381

1шт.

30

D140031

BRACKET

, Start Serial: JJH0046382

1шт.

31

231-1448

NUT,1/2"-13, GB

3/8"

6шт.

32

495-11053

WASHER,1/2", SAE

14шт.

33

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2 x 89 mm

4шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

35

425-108

NUT,1/2" - 13, Gr 5

8шт.

36

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

37

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 76 mm

2шт.

38

D127250

CLAMP

1шт.

39

E48659

ADAPTER

1шт.

40

E48672

DASHPOT

RESTRICTOR

1шт.
