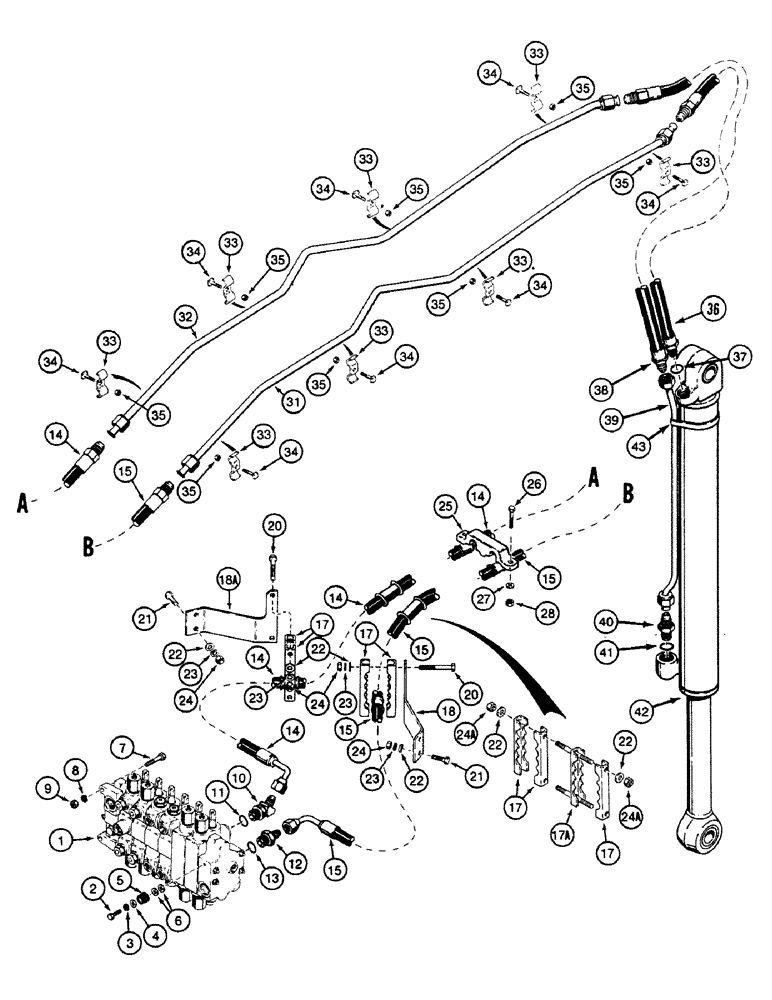

Запчасти Case 580SK (8-108) - HYDRAULIC CIRCUIT BUCKET CYLINDER, NOT FOR PRESTIGE, INTEGRAL BACKHOE (08) - HYDRAULICS

1

1340862C4

DISTRIBUTOR

VALVE ASSY See Page : 8-295,297

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

13/32"

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

With 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ADAPTER with 13

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

14

E48524

HOSE

1шт.

15

E48520

HOSE

1шт.

17

D92721

CLAMP

7шт.

17a

D140552

CLAMP

With Studs

1шт.

18

D140030

BRACKET

Right Rear

1шт.

18a

D140031

BRACKET

Left Rear

1шт.

20

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2 x 89 mm

4шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

22

495-11053

WASHER,1/2", SAE

12шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

24

425-108

NUT,1/2" - 13, Gr 5

8шт.

24a

231-1448

NUT,1/2"-13, GB

4шт.

25

D127250

CLAMP

1шт.

26

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 76 mm

2шт.

27

495-11053

WASHER,1/2", SAE

2шт.

28

231-1448

NUT,1/2"-13, GB

2шт.

31

E49851

PIPE

Right

1шт.

32

E49850

PIPE

Left

1шт.

33

D127681

CLAMP

8шт.

34

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 25 mm

8шт.

35

231-4116

NUT,3/8"-16, GB

3/8"

8шт.

36

D136489

HOSE,15.88mm ID x 640mm L

640 mm With : 37, Serial Range: -JJH0045480

1шт.

36

D140302

HOSE

With : 37, Start Serial: JJH0045481

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

D136488

HOSE,15.88mm ID x 640mm L

640 mm, Serial Range: -JJH0045480

1шт.

38

D140303

HOSE ASSY.

, Start Serial: JJH0045481

1шт.

39

D141248

TUBE

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 41

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

42

1340991C1

CYLINDER ASSY.

89 x 872 mm, See Figure : 8-376, Serial Range: -JJH0014399

1шт.

42

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1340991C1

1шт.

42

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

42

1542920C1

CYLINDER ASSY.

89 x 872 mm, See Figure : 8-378, Serial Range: JJH0014400-JJH0046190

1шт.

42

235916A1R

REMAN-HYD CYLINDER

Reman New PN 1542920C1

1шт.

42

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

42

110290A1

CYLINDER ASSY.

89 x 872 mm, See Figure : 8-378, Start Serial: JJH0046191

1шт.

42

235916A1R

REMAN-HYD CYLINDER

Reman New PN 110290A1

1шт.

42

235916A1C

CORE-HYD CYLINDER

Return Number

1шт.

43

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.
