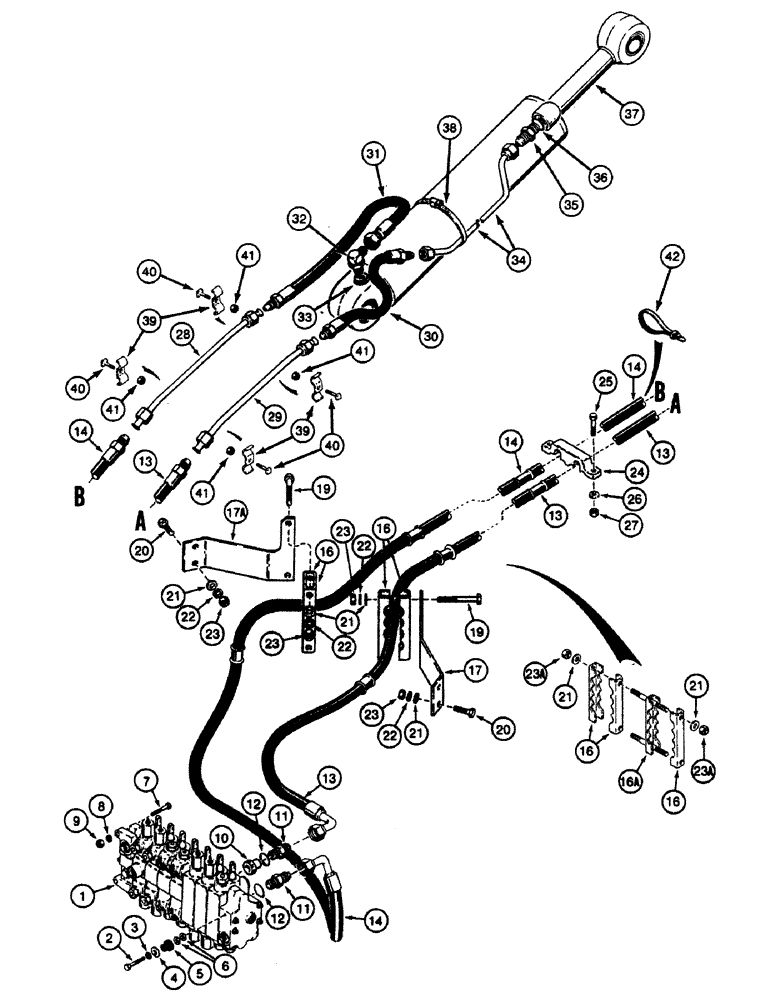

Запчасти Case 580SK (8-100) - HYDRAULIC CIRCUIT DIPPER CYLINDER, NOT FOR PRESTIGE, INTEGRAL BACKHOE (08) - HYDRAULICS

1

VALVE ASSY See Figure : 8-294, 8-296

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION

1шт.

6

495-81266

WASHER,0.41" ID x 0.88" OD x 0.07" Thk

10 x 22 x 2 mm

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

D140183

RESTRICTOR

1шт.

11

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER With : 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

E48521

HOSE

Lower

1шт.

13

E48526

HOSE

SAE J1177 Lower

1шт.

14

E48523

HOSE

, Serial Range: -JJH0046381

1шт.

14

112978A1

HOSE

J - Upper, Start Serial: JH0046382

1шт.

14

E48528

HOSE

SAE J1177 Upper

1шт.

16

D92721

CLAMP

7шт.

16a

D140552

CLAMP

With Studs

1шт.

17

D140030

BRACKET

Right

1шт.

17a

D140031

BRACKET

Left

1шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2 x 89 mm

4шт.

20

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

21

495-11053

WASHER,1/2", SAE

12шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

23

425-108

NUT,1/2" - 13, Gr 5

8шт.

23a

231-1448

NUT,1/2"-13, GB

4шт.

24

D127250

CLAMP

1шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 76 mm

2шт.

26

495-11053

WASHER,1/2", SAE

2шт.

27

231-1448

NUT,1/2"-13, GB

2шт.

28

E55031

PIPE

Left

1шт.

29

E55032

PIPE

Right

1шт.

30

D127687

HOSE,15.88mm ID x 400mm L

400 mm

1шт.

31

D140157

HOSE,15.88mm ID x 750mm L

750 mm

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 33

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

D139898

PIPE

1шт.

35

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter with 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

1340984C1

CYLINDER ASSY.

127 x 583 mm, See Figure : 8-372, Serial Range: -JJH0014388

1шт.

37

1542912C1

CYLINDER ASSY.

127 x 583 mm, See Figure : 8-374 JJH0014389, Serial Range: -JJH0046126

1шт.

37

110294A1

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 580.4mm Stroke

127 x 583 mm, See Figure : 8-374, Start Serial: JJH0046127

1шт.

38

214-1488

HOSE CLAMP,130.05mm - 152.4mm

1шт.

39

D127681

CLAMP

4шт.

40

417-616

BOLT,Sq Hd, 3/8" - 16 x 1", Gr 2

3/8 x 25 mm

4шт.

41

231-4116

NUT,3/8"-16, GB

3/8"

4шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
