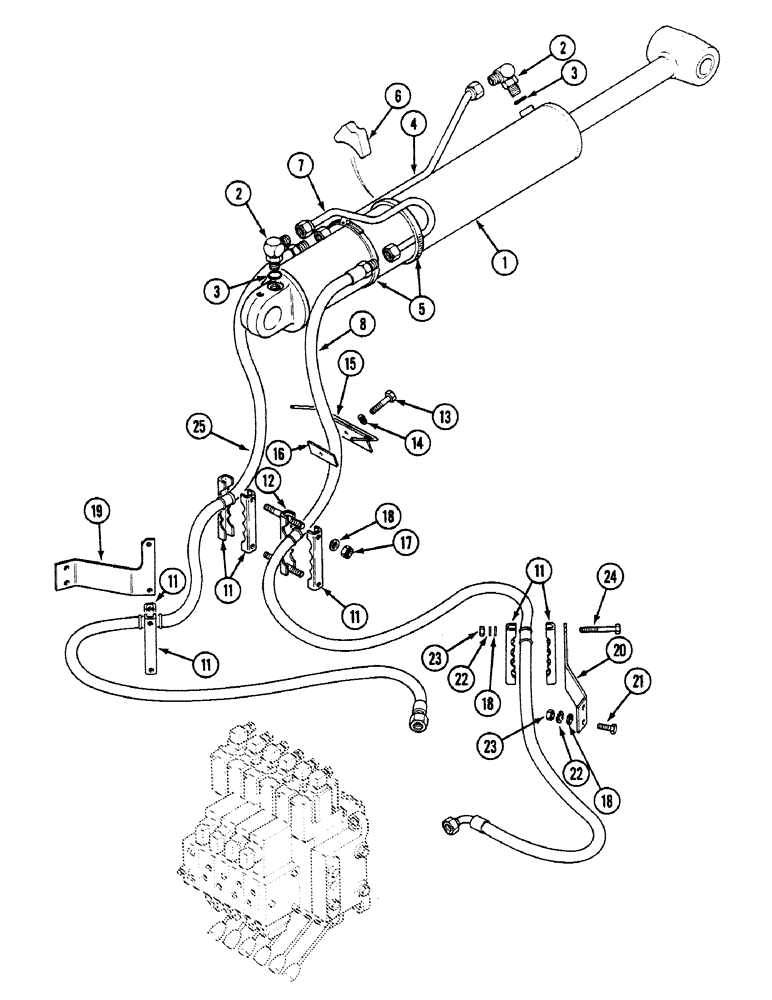

Запчасти Case 580SK (8-098) - HYDRAULIC CIRCUIT BOOM CYLINDER, SERVOPOWER VERSION, INTEGRAL BACKHOE (08) - HYDRAULICS

1

1346217C1

CYLINDER ASSY.

See Figure : 8-368, Serial Range: -JJH0014064

1шт.

1

1542916C1

CYLINDER ASSY.

See Figure : 8-370, Serial Range: JJH0014065-JJH0046126

1шт.

1

1543391C1

CYLINDER ASSY.

See Figure : 8-370, Start Serial: JJH0046127

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

With 3

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

D141614

TUBE

1шт.

5

141502A1

CLAMP

2шт.

6

D38648

BLOCK

INSULATOR

1шт.

7

131709A1

PIPE

1шт.

8

E48522

HOSE

1шт.

11

D92721

CLAMP

7шт.

12

D140552

CLAMP

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

D140105

BRACKET

1шт.

16

D135667

PLATE

1шт.

17

231-1448

NUT,1/2"-13, GB

4шт.

18

495-11053

WASHER,1/2", SAE

12шт.

19

D140031

BRACKET

, Serial Range: -JJH0046381

1шт.

19

D140030

BRACKET

, Start Serial: JJH0046382

1шт.

20

D140030

BRACKET

, Serial Range: -JJH0046381

1шт.

20

D140031

BRACKET

, Start Serial: JJH0046382

1шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

23

425-108

NUT,1/2" - 13, Gr 5

8шт.

24

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1/2 x 89 mm

4шт.

25

E48519

HOSE

1шт.
