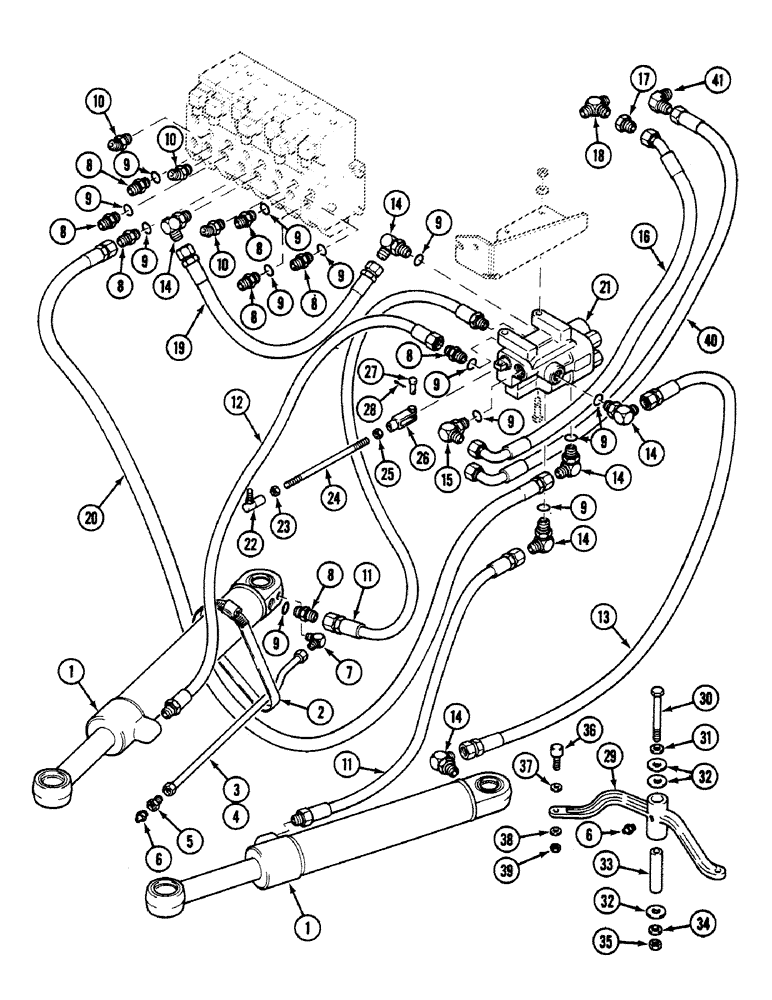

Запчасти Case 580SK (8-090) - HYDRAULIC CIRCUIT, SWING CYLINDER SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

1971702C4

CYLINDER ASSY.

See Figure : 8-364

2шт.

2

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

3

D134964

TUBE

Left

1шт.

4

D134966

TUBE

Right

1шт.

5

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

7

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING

2шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 9

8шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

3шт.

11

113066A1

HOSE

2шт.

12

113065A1

HOSE

1шт.

13

113067A1

HOSE

1шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

6шт.

15

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

With 9

1шт.

16

113188A1

HOSE

, Serial Range: -JJH0047171

1шт.

17

E47425

RESTRICTOR

ADAPTER, Serial Range: -JJH0047171

1шт.

18

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

, Serial Range: -JJH0047171

1шт.

19

112971A1

HOSE

1шт.

20

112972A1

HOSE

1шт.

21

1346067C1

VALVE

ASSY

1шт.

22

D133522

BALL JOINT,3/8" - 24 x 1-3/8"

ASSY

1шт.

23

125-11011

NUT,3/8"-24, G5, LH

1шт.

24

D134127

ROD

1шт.

25

425-115

NUT,5/16"-24, G5

1шт.

26

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

27

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

28

432-612

COTTER PIN,3/32" x 3/4"

1шт.

29

D145259

CRANK LEVER

1шт.

30

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1/2" x 114 mm

1шт.

31

D64050

WASHER

9/16"

1шт.

32

495-21056

WASHER,1/2"

1шт.

33

D145249

SPACER

1шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

35

425-108

NUT,1/2" - 13, Gr 5

1шт.

36

D145113

SHIFTER ROLLER

PIN

1шт.

37

495-11047

WASHER,7/16", SAE

1шт.

38

492-11044

LOCK WASHER,7/16"

1шт.

39

425-117

NUT,7/16"-20, G5

1шт.

40

129299A1

HOSE

ASSY, Start Serial: JJH0047172

1шт.

41

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

, Start Serial: JJH0047172

1шт.
