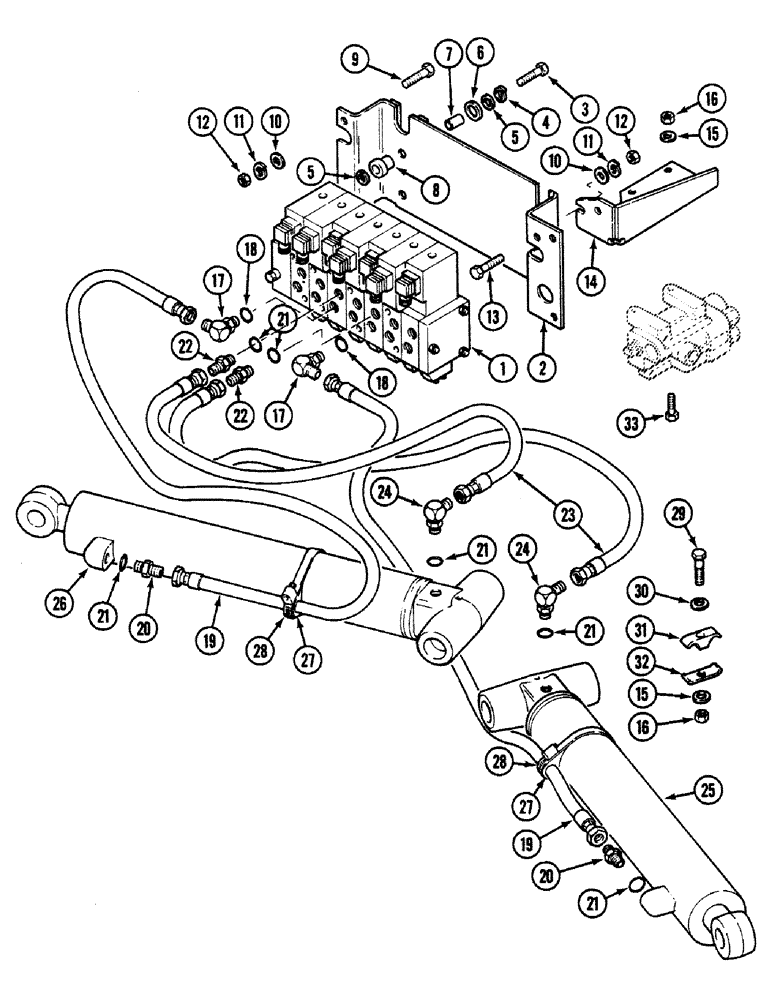

Запчасти Case 580SK (8-080) - HYDRAULIC CIRCUIT, STABILIZER CYLINDERS, SERVOPOWER, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

E48319

VALVE, CONTROL

ASSY

1шт.

2

E55053

SUPPORT

1шт.

3

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 38 mm

4шт.

4

492-11031

LOCK WASHER,5/16"

4шт.

5

115436A1

WASHER

5/16"

8шт.

6

495-81261

WASHER,13/16" x 1 1/2" x .067", HDN

3/4"

4шт.

7

114704A1

SPACER

4шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

4шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

10

495-11053

WASHER,1/2", SAE

5шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

5шт.

12

425-108

NUT,1/2" - 13, Gr 5

5шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

14

E55048

SUPPORT

1шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

With 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

112975A1

HOSE

2шт.

20

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

With 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

With 21

2шт.

23

112974A1

HOSE

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

With 21

2шт.

25

G110672

CYLINDER ASSY.

Right See Figure : 8-360

1шт.

26

G110673

CYLINDER ASSY.

Left See Figure : 8-360

1шт.

27

D142787

SPACER

INSULATOR

2шт.

28

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

2шт.

29

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1/2" x 44 mm

2шт.

30

495-21044

WASHER,3/8"

2шт.

31

D120613

CLAMP,20mm ID

2шт.

32

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
