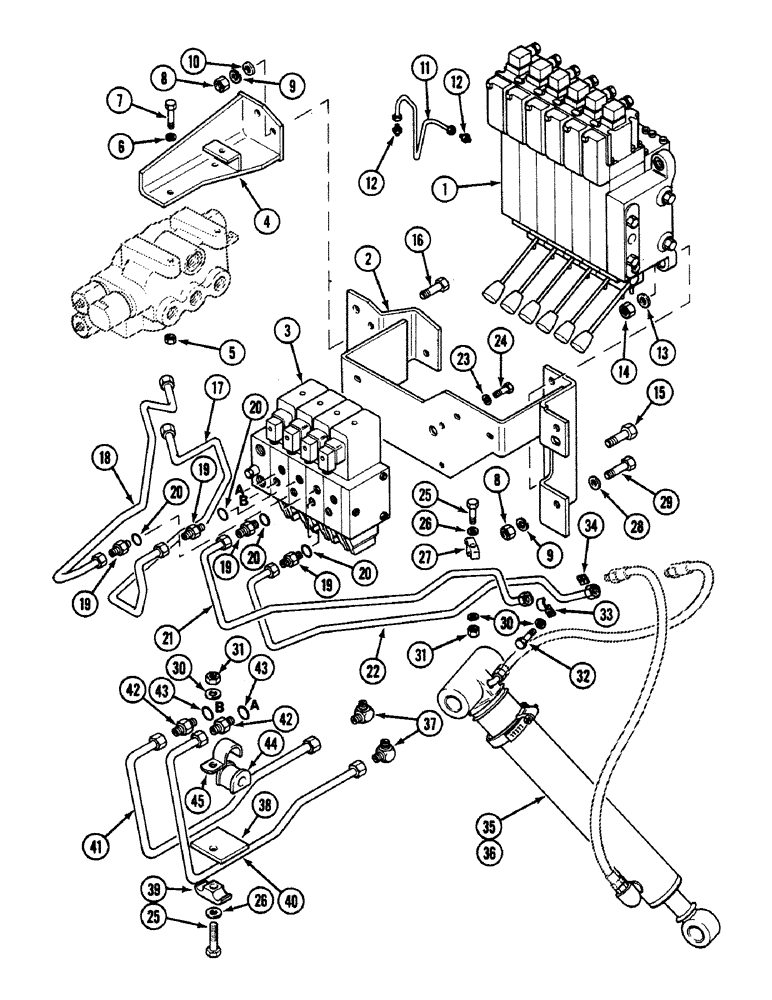

Запчасти Case 580SK (8-076) - HYDRAULIC CIRCUIT STABILIZER CYLINDER, UP TO S/N JJH0046381, PRESTIGE VERSION, INTEGRAL BACKHOE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
E47748
VALVE, CONTROL
ASSY
1шт.
2
E47360
SUPPORT
1шт.
3
E47294
DISTRIBUTOR
VALVE
1шт.
4
E47857
SUPPORT
1шт.
5
425-106
NUT,3/8"-16, Cl 5
2шт.
6
492-11038
LOCK WASHER,3/8"
2шт.
7
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
8
425-108
NUT,1/2" - 13, Gr 5
2шт.
9
92-11050
LOCK WASHER,1/2"
2шт.
10
95-11053
WASHER,1/2"
17/32"
1шт.
11
E47462
PIPE ASSY.
1шт.
12
218-5088
HYD CONNECTOR,7/16" - 20 Male JIC x 1/2" - 20 Male ORB
ADAPTER
2шт.
13
492-11062
BEARING WASHER,5/8"
3шт.
14
425-1010
NUT,5/8"-11, G5
3шт.
15
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
3шт.
16
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
1шт.
17
E47549
PIPE ASSY.
1шт.
18
E47548
PIPE ASSY.
1шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
21
E47551
PIPE ASSY.
1шт.
22
E47550
PIPE ASSY.
1шт.
24
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
4шт.
25
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
3шт.
26
495-21044
WASHER,3/8"
(7/16")
3шт.
27
D120679
CLAMP,Tube, 1/2"
2шт.
28
495-21056
WASHER,1/2"
9/16"
5шт.
29
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
30
492-11038
LOCK WASHER,3/8"
7шт.
31
425-106
NUT,3/8"-16, Cl 5
3шт.
32
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
33
D140709
CLAMP
4шт.
34
84899
SQUARE NUT,Sq, 3/8"-16, G2
4шт.
35
G110673
CYLINDER ASSY.
Right See Figure : 8-360
1шт.
36
G110672
CYLINDER ASSY.
Left See Figure : 8-360
1шт.
37
218-475
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male JIC
ELBOW 90 deg
2шт.
38
E47600
SUPPORT
1шт.
39
D120613
CLAMP,20mm ID
1шт.
40
E47640
PIPE ASSY.
1шт.
41
E47641
PIPE ASSY.
1шт.
42
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
With : 43
14шт.
43
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
44
D74182
GROMMET,3/4" ID x 1.46" L
INSULATOR
1шт.
45
D74192
CLAMP
1шт.
Выбрано товаров: 45
