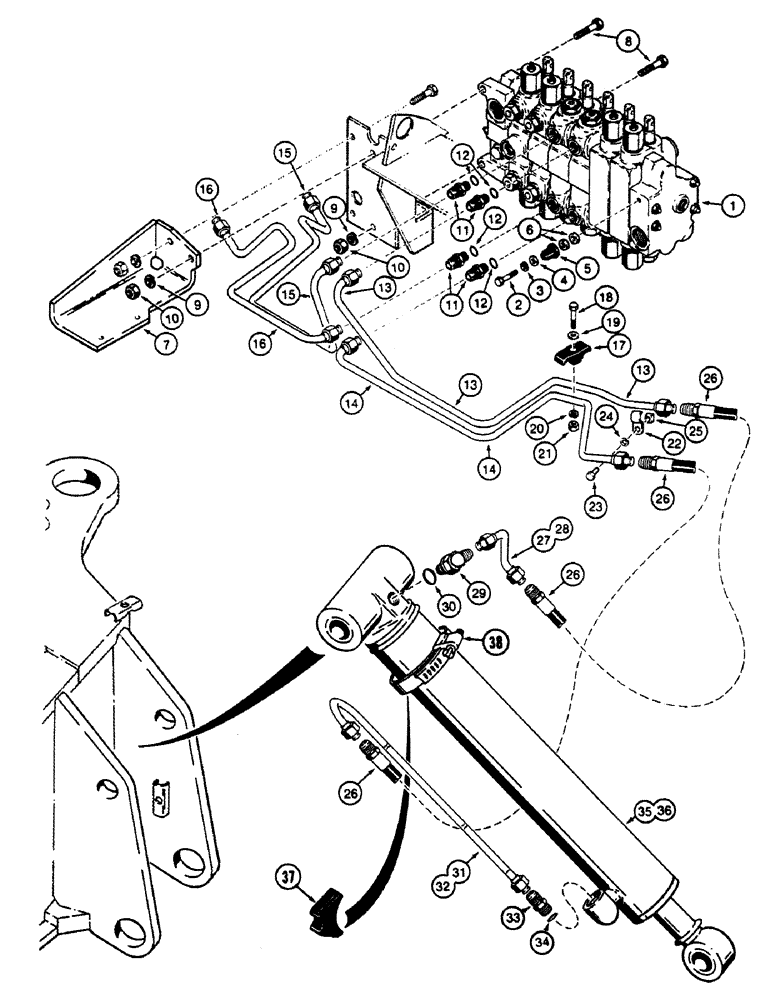

Запчасти Case 580SK (8-072) - HYDRAULIC CIRCUIT STABILIZER CYLINDER, NOT FOR PRESTIGE, INTEGRAL BACKHOE (08) - HYDRAULICS

1

VALVE ASSY See Figure : 8-294, 8-298

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

3

492-11038

LOCK WASHER,3/8"

1шт.

4

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

3/8"

1шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR

1шт.

6

195-2030

WASHER,13/32" x 7/8" x .065"

10 x 22 x 2 mm

2шт.

7

D135614

SUPPORT

1шт.

8

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

With 12

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

D134196

TUBE

Upper, Right

1шт.

14

D134194

TUBE

Lower Right

1шт.

15

D141169

PIPE

Upper Left

1шт.

16

D134189

TUBE

Lower Left

1шт.

17

D120679

CLAMP,Tube, 1/2"

2шт.

18

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

495-21044

WASHER,3/8"

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

D140709

CLAMP

4шт.

23

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

26

D126490

HOSE

700 mm

4шт.

27

D141044

PIPE

Right

1шт.

28

D141046

PIPE

Left

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

With 30

2шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

D141117

PIPE

Right

1шт.

32

D141115

TUBE

Left

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

With 34

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

35

G110672

CYLINDER ASSY.

108 x 553 mm Right See Figure : 8-360

1шт.

36

G110673

CYLINDER ASSY.

108 x 553 mm Left See Figure : 8-360

1шт.

37

D38648

BLOCK

INSULATOR Rubber

4шт.

38

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

2шт.
