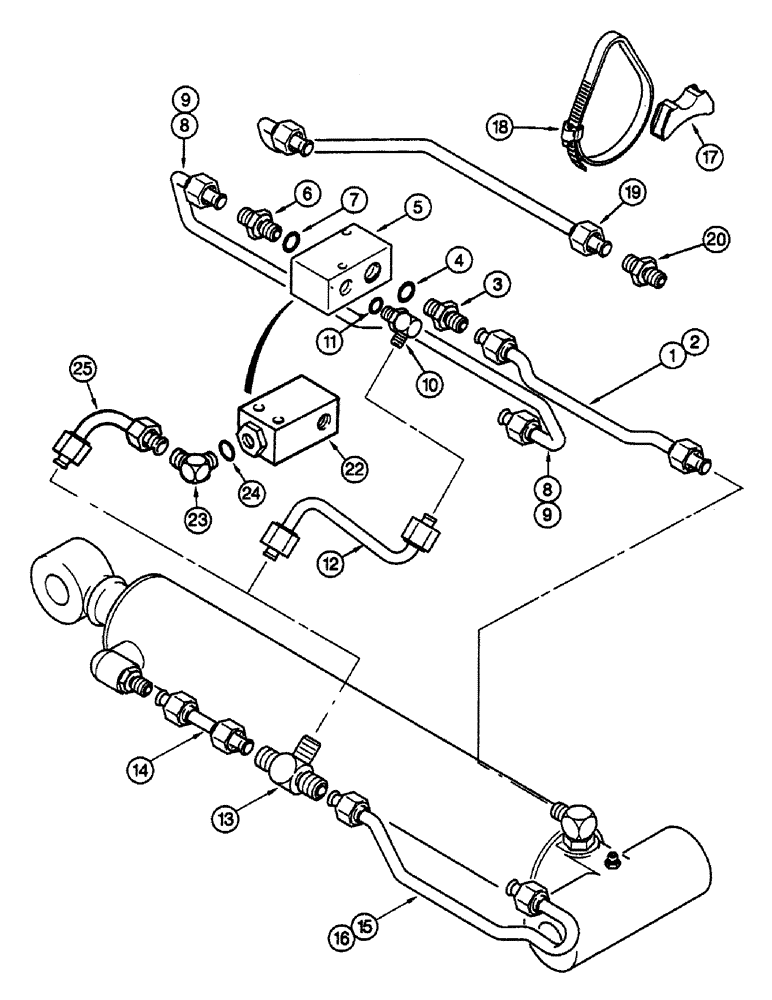

Запчасти Case 580SK (8-068) - STABILIZER CYLINDER LOAD HOLDING VALVE, INTEGRAL BACKHOE (08) - HYDRAULICS

1

D142344

TUBE

Right

1шт.

2

D142342

TUBE

Left

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Adaptor with 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

113911A1

VALVE POPPET

ASSY See Figure : 8-350, Serial Range: -JJH0049647

2шт.

6

D143621

FITTING

ADAPTER With : 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

D145275

PIPE

Right

1шт.

9

D145277

PIPE

Left

1шт.

9

120453A1

PIPE

Servopower JJH0049648 to

2шт.

10

D143620

FITTING

ELBOW 90 deg With : 11

2шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

D142358

TUBE

, Serial Range: -JJH0049647

2шт.

13

218-1582

TEE,37 Degree, 3/4"-16 x 7/16"-20, Br

TEE

2шт.

14

D142350

TUBE

2шт.

15

D142356

TUBE

Right

1шт.

16

D142354

TUBE

Left

1шт.

17

D38648

BLOCK

ISOLATOR

4шт.

17

D38648

BLOCK

INSULATOR Prestige Version JJH0046382 to

6шт.

18

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

4шт.

18

214-1484

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

Prestige Version JJH0046382 to

6шт.

19

120453A1

PIPE

ASSY Prestige Version JJH0046382 to

2шт.

20

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

Prestige Version JJH0046382 to

4шт.

22

143833A1

VALVE POPPET

Danfoss JJH0049648 to

2шт.

23

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

With : 24 JJH0049648 to

2шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

143923A1

TUBE,6.35 mm OD, 51, 46 mm Length

JJH0049648 to

2шт.
