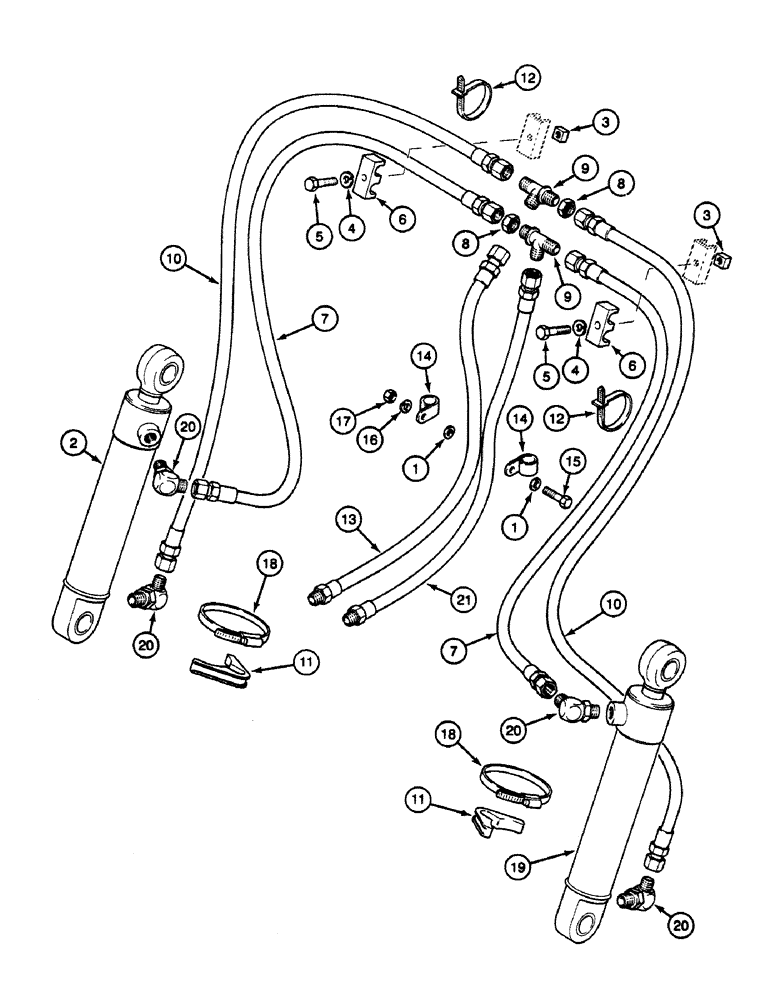

Запчасти Case 580SK (8-066) - LOADER 4-IN-1 CLAM CYLINDER AT LOADER BUCKET (08) - HYDRAULICS

1

495-81159

WASHER,33/64" x 7/8" x .180"

33/64"

2шт.

2

G101191

CYLINDER ASSY.

Left, See Figure : 8-356, Serial Range: -JJH0046197

1шт.

2

1346190C1

CYLINDER ASSY.

Left, See Figure : 8-356, Start Serial: JJH0046198

1шт.

3

25-226

SQUARE NUT,Sq, 3/8"-16

3/8"

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

2шт.

6

D124301

CLAMP,3/4" ID

2шт.

7

E47797

HOSE

2шт.

8

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

9

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

tee

2шт.

10

E47798

HOSE

2шт.

11

E48206

SPACER

INSULATION Rubber

2шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

13

E48215

HOSE

1шт.

14

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 32 mm

2шт.

16

492-11031

LOCK WASHER,5/16"

1шт.

17

425-105

NUT,5/16"-18, G5

2шт.

18

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

19

G101190

CYLINDER ASSY.

Right, See Figure : 8-356 to JJH0046197

1шт.

19

87454017R

REMAN-HYD CYLINDER

580SK LOADER BACKHOE EU, Right, Reman for New PN G101190

1шт.

19

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

19

1346189C1

CYLINDER ASSY.

Right, See Figure : 8-356, Start Serial: JJH0046198

1шт.

19

87454017R

REMAN-HYD CYLINDER

580SK LOADER BACKHOE EU, Right, Start Serial: JJH0046198, Reman for New PN 1346189C1

1шт.

19

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

4шт.

21

E47796

HOSE

2шт.
