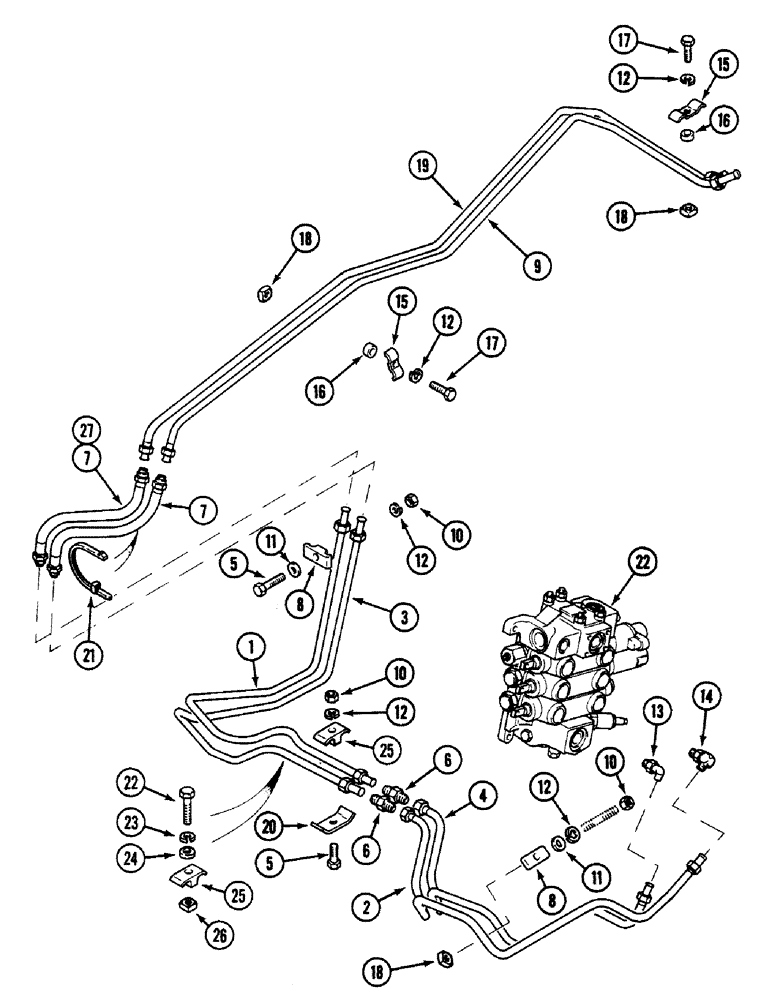

Запчасти Case 580SK (8-064) - LOADER 4 IN 1 CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D148673

PIPE

1шт.

1

143366A1

PIPE

Lower, Serial Range: -JJH48585

1шт.

With Air Conditioning

1шт.

2

D148675

PIPE

1шт.

2

133145A1

PIPE

Lower, Serial Range: -JJH48585

1шт.

With Air Conditioning

1шт.

3

D148669

PIPE

1шт.

3

143367A1

PIPE

Upper, Serial Range: -JJH48585

1шт.

With Air Conditioning

1шт.

4

D148671

PIPE

1шт.

4

133146A1

PIPE

Upper, Serial Range: -JJH48585

1шт.

With Air Conditioning

1шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR

2шт.

7

D125995

HOSE,12.7mm ID x 750mm L

750 mm

1шт.

8

D120613

CLAMP,20mm ID

2шт.

9

D146248

PIPE

1шт.

9

142957A1

PIPE

Lower, Serial Range: -JJH48585

1шт.

With Air Conditioning

1шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

495-21044

WASHER,3/8"

(7/16")

2шт.

12

492-11038

LOCK WASHER,3/8"

8шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

14

D23143

FITTING

ELBOW 90 deg

1шт.

15

D143427

CLAMP

4шт.

16

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 x 16 x 6 mm

4шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

5шт.

19

D146246

PIPE

1шт.

19

142956A1

PIPE

Upper, Serial Range: -JJH48585

1шт.

With Air Conditioning

1шт.

20

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

495-21044

WASHER,3/8"

(7/16")

1шт.

25

D120613

CLAMP,20mm ID

2шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.
