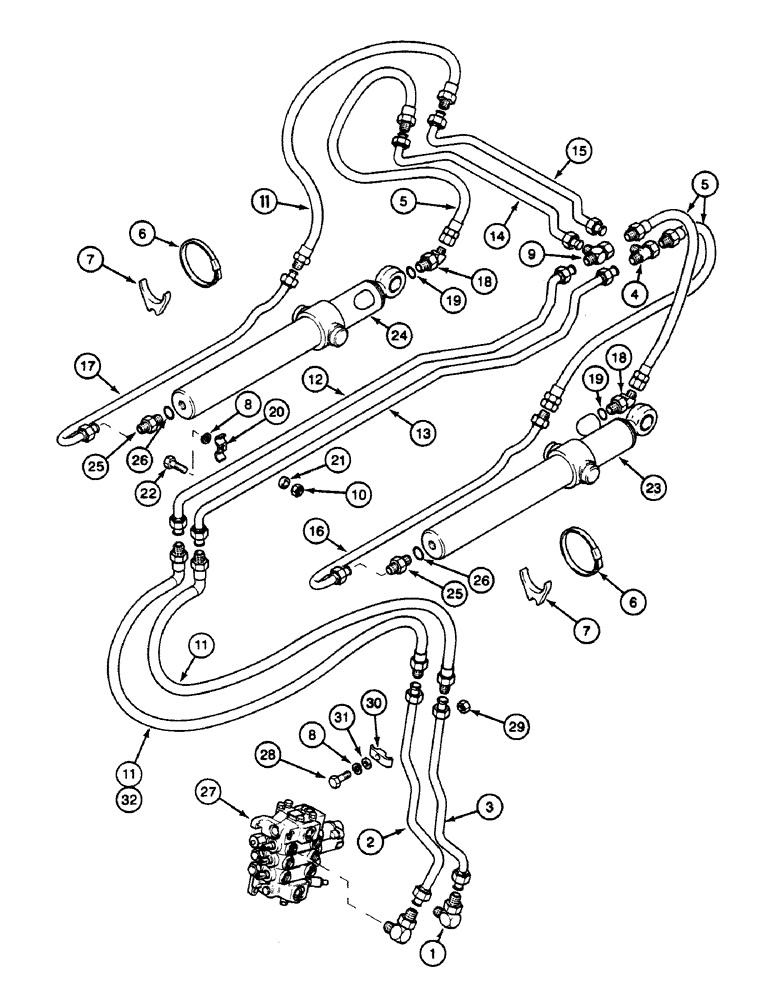

Запчасти Case 580SK (8-060) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT, NOT FOR PRESTIGE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
R20894
FITTING
ELBOW
2шт.
2
D147963
PIPE
Upper
1шт.
2
143922A1
PIPE
, Start Serial: JJH0048585
1шт.
With Air Conditioning
1шт.
3
D147961
PIPE
Lower
1шт.
3
143921A1
PIPE
, Start Serial: JJH0048585
1шт.
With Air Conditioning
1шт.
4
218-595
TEE,7/8"-14, 37 Degree
TEE
2шт.
5
D131497
HOSE,12.7mm ID x 725mm L
3шт.
6
214-1464
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
2шт.
7
D38648
BLOCK
INSULATOR Rubber
2шт.
8
492-11038
LOCK WASHER,3/8"
2шт.
9
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
1шт.
10
84899
SQUARE NUT,Sq, 3/8"-16, G2
5шт.
11
D125995
HOSE,12.7mm ID x 750mm L
1шт.
12
D146250
PIPE
1шт.
12
142959A1
PIPE
, Start Serial: JJH0048585
1шт.
With Air Conditioning
1шт.
13
D146254
PIPE
1шт.
13
142962A1
PIPE
, Start Serial: JJH0048585
1шт.
With Air Conditioning
1шт.
14
D146552
PIPE
1шт.
15
D146550
PIPE
1шт.
16
D127940
PIPE
Right
1шт.
17
D127942
PIPE
Left
1шт.
18
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
With 19
2шт.
19
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
20
D143427
CLAMP
5шт.
21
D143417
SPACER,10.31mm ID x 15.88mm OD x 6.4mm L
5шт.
22
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
5шт.
23
G108486
CYLINDER ASSY.
Right
1шт.
24
G108487
CYLINDER ASSY.
Left See Figure : 8-354
1шт.
25
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER With : 26
2шт.
26
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
27
VALVE ASSY See Figure : 8-316, 8-318
1шт.
28
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
29
425-106
NUT,3/8"-16, Cl 5
2шт.
30
D120613
CLAMP,20mm ID
1шт.
31
495-21044
WASHER,3/8"
(7/16")
1шт.
32
144209A1
HOSE
ASSY, Start Serial: JJH0048585
1шт.
With Air Conditioning
1шт.
Выбрано товаров: 41
