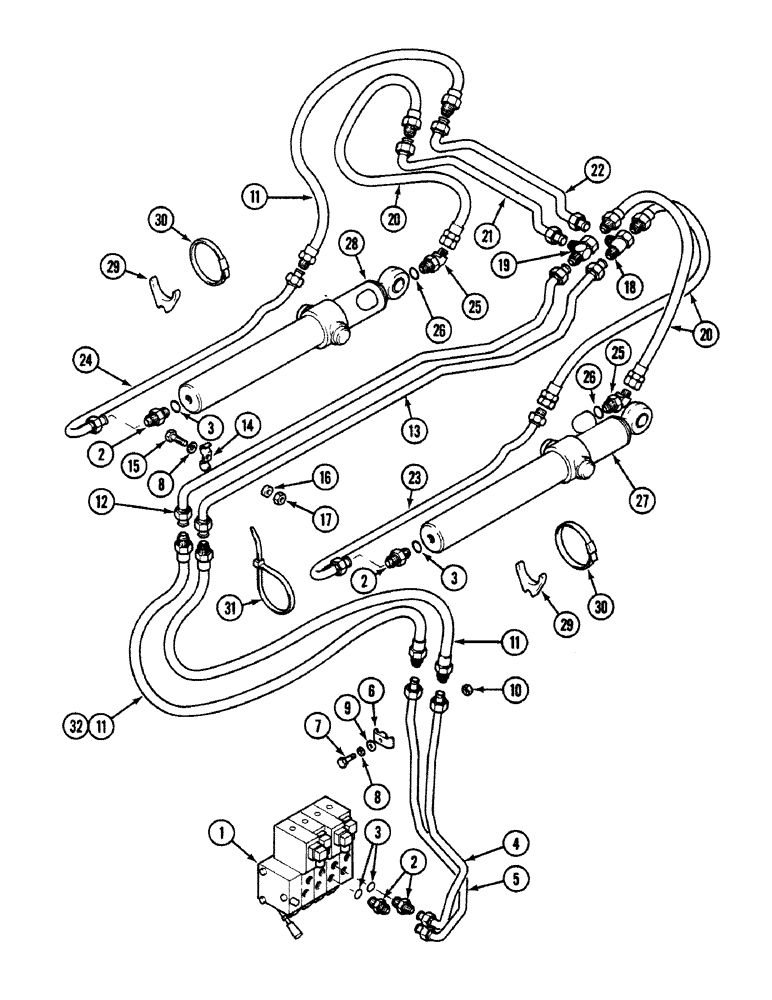

Запчасти Case 580SK (8-056) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT, SERVOPOWER, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

E48318

VALVE, CONTROL

ASSY See Figure : 8-046, 8-252

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 3

4шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

111425A1

PIPE

ASSY

1шт.

4

142591A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

5

111424A1

PIPE

ASSY

1шт.

5

142590A1

PIPE

ASSY, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

6

D120613

CLAMP,20mm ID

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

8

492-11038

LOCK WASHER,3/8"

6шт.

9

495-21044

WASHER,3/8"

(7/16")

1шт.

10

425-106

NUT,3/8"-16, Cl 5

1шт.

11

D125995

HOSE,12.7mm ID x 750mm L

1шт.

12

D146250

PIPE

Dump

1шт.

12

142959A1

PIPE

Dump, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

13

D146254

PIPE

1шт.

13

142962A1

PIPE

Anti-Rollback, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

14

D143427

CLAMP

5шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

16

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

5шт.

17

84899

SQUARE NUT,Sq, 3/8"-16, G2

5шт.

18

218-595

TEE,7/8"-14, 37 Degree

1шт.

19

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

ADAPTER

1шт.

20

D131497

HOSE,12.7mm ID x 725mm L

3шт.

21

D146552

PIPE

1шт.

22

D146550

PIPE

1шт.

23

D127940

PIPE

Right

1шт.

24

D127942

PIPE

Left

1шт.

25

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

G108486

CYLINDER ASSY.

Right, Serial Range: -JJH0046190

1шт.

27

110306A1

CYLINDER ASSY.

Right, Start Serial: JJH0046191

1шт.

28

G108487

CYLINDER ASSY.

Left, Serial Range: -JJH0046190

1шт.

28

110309A1

CYLINDER ASSY.

Left See Figure : 8-354, Start Serial: JJH0046191

1шт.

29

D38648

BLOCK

INSULATOR Rubber

2шт.

30

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

32

144209A1

HOSE

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.
