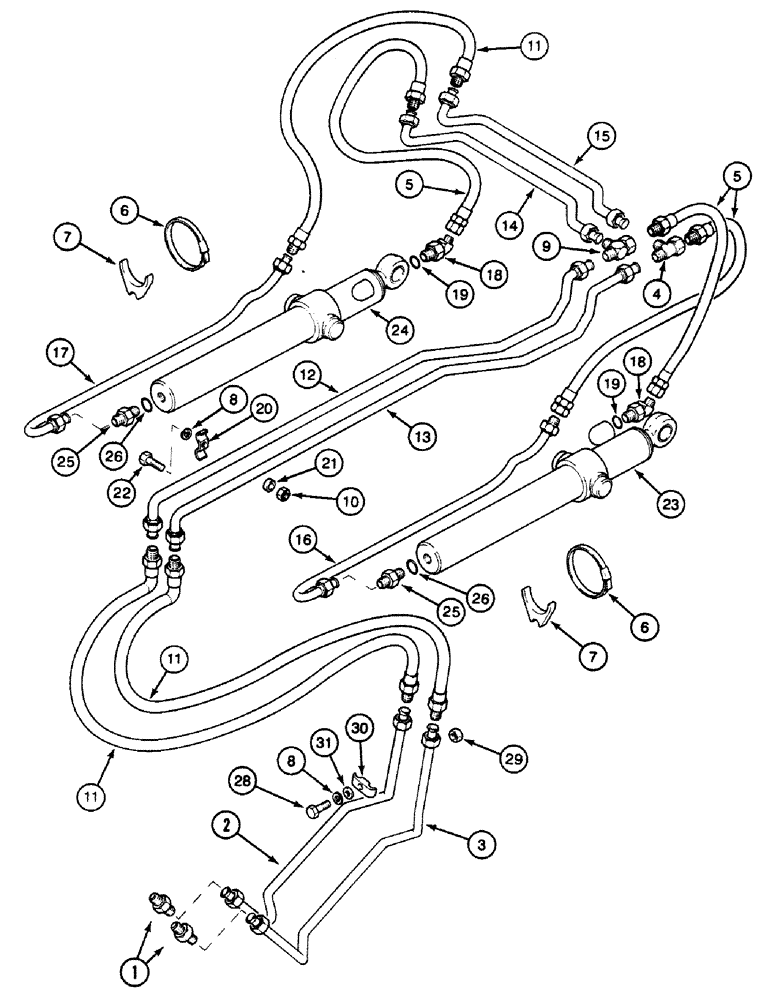

Запчасти Case 580SK (8-054) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT, PESTIGE VERSION, UP TO S/N JJH0046381 (08) - HYDRAULICS

1

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION

2шт.

2

E48994

PIPE

Upper

1шт.

3

E48998

PIPE

Lower

1шт.

4

218-595

TEE,7/8"-14, 37 Degree

TEE

2шт.

5

D131497

HOSE,12.7mm ID x 725mm L

3шт.

6

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

7

D38648

BLOCK

INSULATOR Rubber

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

1шт.

10

84899

SQUARE NUT,Sq, 3/8"-16, G2

5шт.

11

D125995

HOSE,12.7mm ID x 750mm L

3шт.

12

D146250

PIPE

Bucket Dump

1шт.

13

D146254

PIPE

Bucket Rollback

1шт.

14

D146552

PIPE

Crossover Dump

1шт.

15

D146550

PIPE

Crossover Rollback

1шт.

16

D127940

PIPE

Right

1шт.

17

D127942

PIPE

Left

1шт.

18

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

D143427

CLAMP

5шт.

21

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

5шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

23

G108486

CYLINDER ASSY.

Right

1шт.

24

G108487

CYLINDER ASSY.

Left See Figure : 8-354

1шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER With : 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

D120613

CLAMP,20mm ID

1шт.

31

495-21044

WASHER,3/8"

(7/16")

1шт.
