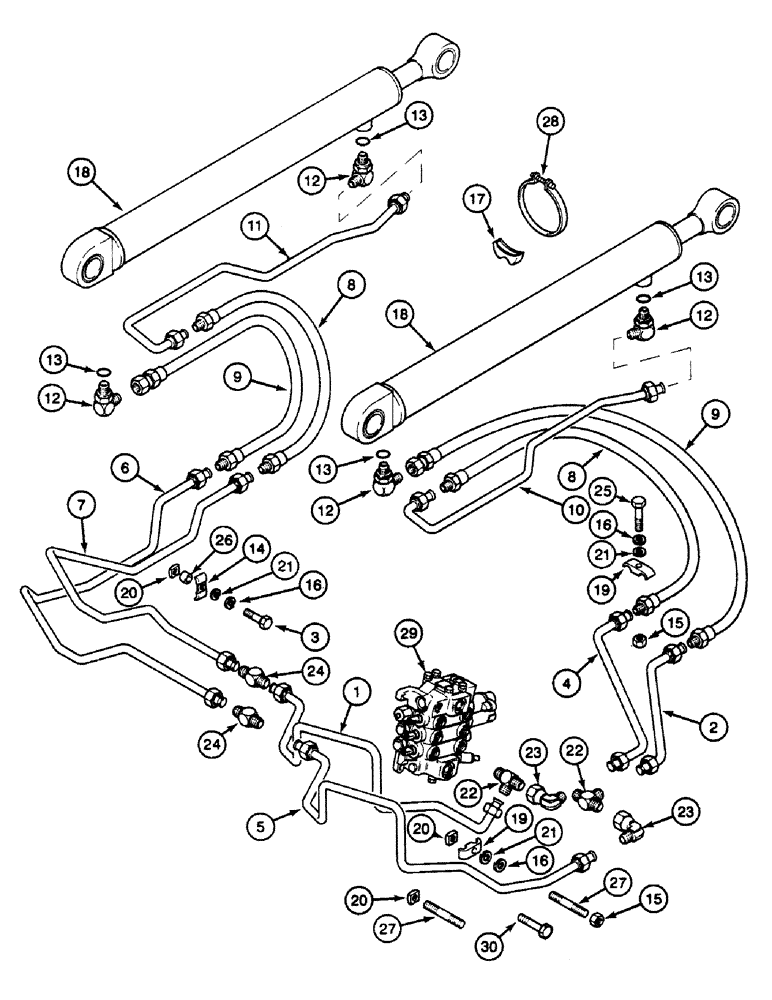

Запчасти Case 580SK (8-050) - LOADER LIFT CYLINDER HYDRAULIC, NOT FOR PRESTIGE (08) - HYDRAULICS

1

D148665

PIPE

Left

1шт.

2

E49708

PIPE

Right

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

4

D145922

PIPE

Right

1шт.

5

D148663

PIPE

Left

1шт.

5

133144A1

PIPE

Left Conditioning, Start Serial: JJH0048585

1шт.

6

D148667

PIPE

Left

1шт.

6

133140A1

PIPE

Left ,With Air Conditioning, Start Serial: JJH0048585

1шт.

7

D148661

PIPE

Left

1шт.

8

D131496

HOSE,12.7mm ID x 690mm L

690 mm

2шт.

9

D131497

HOSE,12.7mm ID x 725mm L

725 mm

2шт.

10

D149044

PIPE

Right

1шт.

11

D149046

PIPE

Left

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 13

4шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

15

425-106

NUT,3/8"-16, Cl 5

3шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

D38648

BLOCK

SPACER

2шт.

18

1980220C2

CYLINDER ASSY.

, Serial Range: -JJH0013527

2шт.

18

1542743C1

CYLINDER ASSY.

See Figure : 8-352, Serial Range: JJH0013528-JJH0045940

2шт.

18

110857A1

CYLINDER ASSY.

, Start Serial: JJH0045941

2шт.

19

D120613

CLAMP,20mm ID

4шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

21

495-21044

WASHER,3/8"

(7/16")

5шт.

22

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

TEE

2шт.

23

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

24

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR

2шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

26

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER

2шт.

27

R46227

STUD

3/8 x 51 mm

2шт.

28

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

29

VALVE ASSY See Figure : 8-316, 8-318

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.
