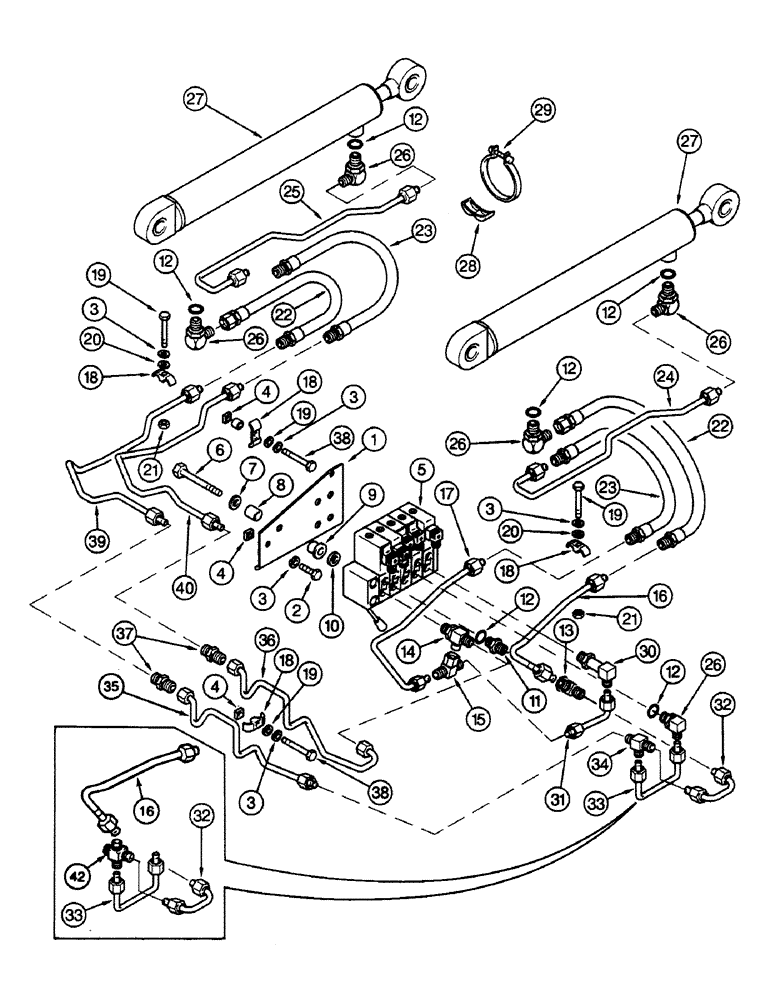

Запчасти Case 580SK (8-046) - LIFT CYLINDER, LOADER, SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

E55049

SUPPORT

1шт.

2

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

3

492-11038

LOCK WASHER,3/8"

7шт.

4

84899

SQUARE NUT,Sq, 3/8"-16, G2

5шт.

5

E48318

VALVE, CONTROL

ASSY

1шт.

6

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 32 mm

4шт.

7

495-81261

WASHER,13/16" x 1 1/2" x .067", HDN

4шт.

8

114704A1

SPACER

4шт.

9

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING

4шт.

10

115436A1

WASHER

4шт.

11

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

ADAPTER

1шт.

14

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

15

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

1шт.

16

111200A1

PIPE

Right

1шт.

16

132702A1

PIPE

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

17

111201A1

PIPE

Left

1шт.

18

D120613

CLAMP,20mm ID

4шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

20

495-21044

WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

D131497

HOSE,12.7mm ID x 725mm L

2шт.

23

D131496

HOSE,12.7mm ID x 690mm L

2шт.

24

E49683

PIPE

Right

1шт.

25

E49681

PIPE

Left

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 12

5шт.

27

D104658

CYLINDER

2шт.

28

D38648

BLOCK

SPACER

2шт.

29

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

30

D23143

FITTING

ELBOW 90 deg

1шт.

31

111199A1

PIPE

1шт.

32

111197A1

PIPE

1шт.

32

132700A1

PIPE

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

33

111198A1

PIPE

1шт.

34

218-595

TEE,7/8"-14, 37 Degree

1шт.

35

111204A1

PIPE

Left

1шт.

35

133137A1

PIPE

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

36

111423A1

PIPE

Left

1шт.

36

132928A1

PIPE

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

37

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

38

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8" x 18 mm

2шт.

39

D148667

PIPE

Left

1шт.

39

133140A1

PIPE

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

40

D148661

PIPE

Left

1шт.

41

144209A1

HOSE

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.

42

218-655

4 WAY CONNECTION,7/8"-14, 37 Degree

, Start Serial: JJH0048585

1шт.

With Air Conditioning

1шт.
