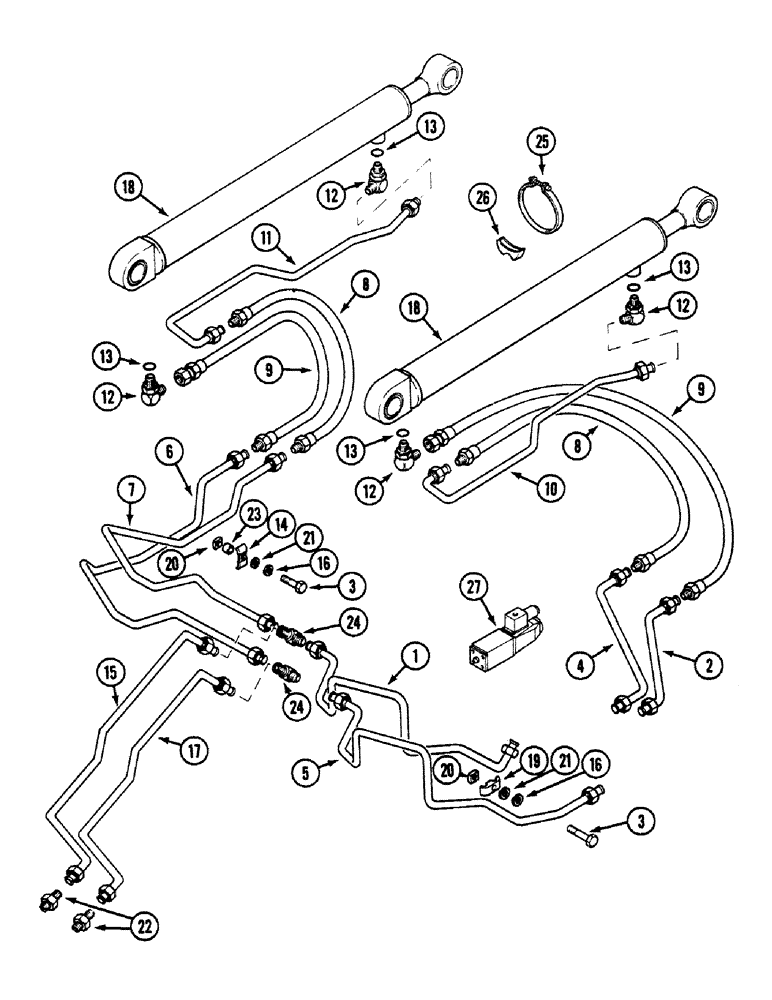

Запчасти Case 580SK (8-044) - LOADER LIFT CYLINDER CIRCUIT, PRESTIGE VERSION, UP TO S/N JJH0046381 (08) - HYDRAULICS

1

E49886

PIPE

Left

1шт.

2

E49549

PIPE

Right

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8 x 19 mm

1шт.

4

E49548

PIPE

Right

1шт.

5

E49887

PIPE

Left

1шт.

6

E49542

PIPE

Left

1шт.

7

E49543

PIPE

Left

1шт.

8

D131496

HOSE,12.7mm ID x 690mm L

690 mm

2шт.

9

D131497

HOSE,12.7mm ID x 725mm L

725 mm

2шт.

10

E49683

PIPE

Right

1шт.

11

E49681

PIPE

Left

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 13

4шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

15

E49537

PIPE

1шт.

16

492-11038

LOCK WASHER,3/8"

7шт.

17

E49539

PIPE

2шт.

18

D104658

CYLINDER

2шт.

19

D120613

CLAMP,20mm ID

2шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

21

495-21044

WASHER,3/8"

(7/16")

5шт.

22

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION

2шт.

23

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER

1шт.

24

218-595

TEE,7/8"-14, 37 Degree

TEE

2шт.

25

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

26

D38648

BLOCK

SPACER

2шт.

27

VALVE See Figure : 8-22

1шт.
