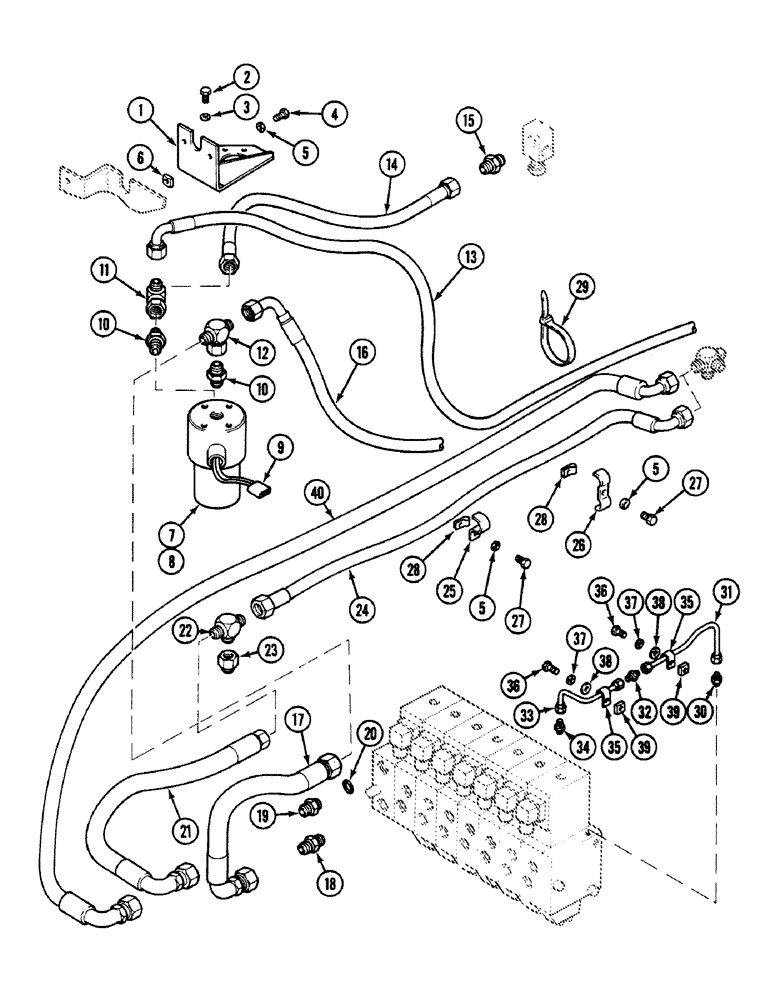

Запчасти Case 580SK (8-040) - BASIC HYDRAULICS, LOWER, SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

E55054

SUPPORT

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

412-612

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2

3/8" x 19 mm

2шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

7

E47368

FILTER, ENGINE OIL

FILTER, OIL HOUSING

1шт.

E48656

O-RING

1шт.

E48655

RING, SNAP

RING SNAP

1шт.

8

E47369

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

E48654

O-RING

1шт.

9

110324A1

INDICATOR

SWITCH

1шт.

10

E47418

FITTING

UNION

1шт.

11

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

2шт.

12

218-838

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

UNION

1шт.

13

113395A1

HOSE

ASSY See Figure : 8-32

1шт.

14

114626A1

HOSE

ASSY

1шт.

15

E47397

FITTING

UNION

1шт.

16

114627A1

HOSE

ASSY See Figure : 8-32

1шт.

17

120350A1

HOSE

ASSY 515 mm

1шт.

18

120349A1

FITTING

UNION

1шт.

19

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

NUT Tube with 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

114629A1

HOSE

ASSY, 475 mm, Serial Range: JJH0046382-JJH0047171

1шт.

22

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

, Serial Range: JJH0046382-JJH0047171

1шт.

23

E47425

RESTRICTOR

UNION, Serial Range: JJH0046382-JJH0047171

1шт.

24

114625A1

HOSE

ASSY, Serial Range: JJH0046382-JJH0047171

1шт.

25

E49805

CLAMP

1шт.

26

E49806

CLAMP

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

28

D122307

NUT

3/8"

2шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

30

218-5088

HYD CONNECTOR,7/16" - 20 Male JIC x 1/2" - 20 Male ORB

UNION

1шт.

31

111426A1

PIPE

1шт.

32

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

1шт.

33

111427A1

PIPE

1шт.

34

122555A1

FITTING

UNION

1шт.

35

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

36

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

37

492-11031

LOCK WASHER,5/16"

2шт.

38

495-11034

WASHER,5/16", SAE

2шт.

39

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

40

129271A1

HOSE

ASSY, Start Serial: JJH0047172

1шт.
