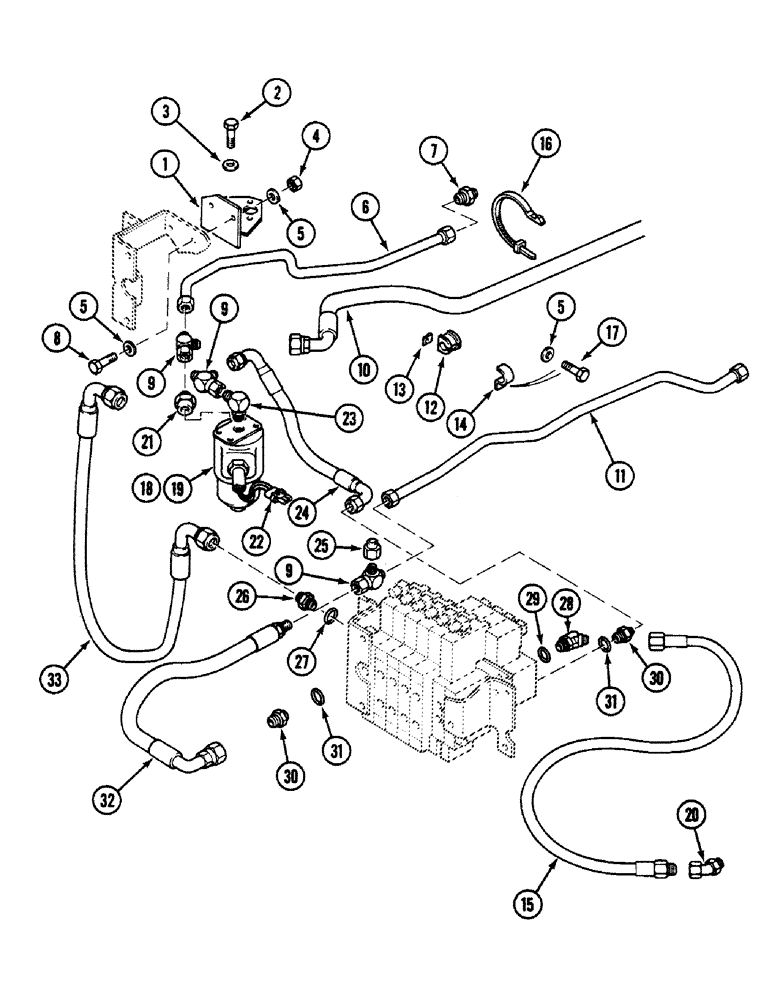

Запчасти Case 580SK (8-038) - BASIC HYDRAULIC LOWER, PRESTIGE VERSION, S/N JJH0016874 TO JJH0046381 (08) - HYDRAULICS

1

E49987

SUPPORT

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

E48739

PIPE

ASSY

1шт.

7

E47397

FITTING

UNION

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Union

3шт.

10

E49553

PIPE

ASSY

1шт.

11

E48968

PIPE

ASSY

1шт.

12

D67279

CLAMP

BLOCK

1шт.

13

D122307

NUT

1шт.

14

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1шт.

15

E49563

HOSE

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

E47368

FILTER, ENGINE OIL

FILTER, OIL HOUSING

1шт.

E48656

O-RING

1шт.

E48655

RING, SNAP

RING SNAP

1шт.

19

E47369

FILTER, ELEMENT

ELEMENT, FILTER ASSY

1шт.

E48654

O-RING

1шт.

20

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

UNION 45 deg

1шт.

21

E47418

FITTING

UNION

1шт.

22

110324A1

INDICATOR

SWITCH

1шт.

23

E49989

FITTING

UNION

1шт.

24

E49943

HOSE

1шт.

25

E47425

RESTRICTOR

UNION

1шт.

26

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

UNION with 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

UNION With : 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Union with 31

2шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

32

E47749

HOSE

ASSY

1шт.

33

E49942

HOSE

ASSY

1шт.
