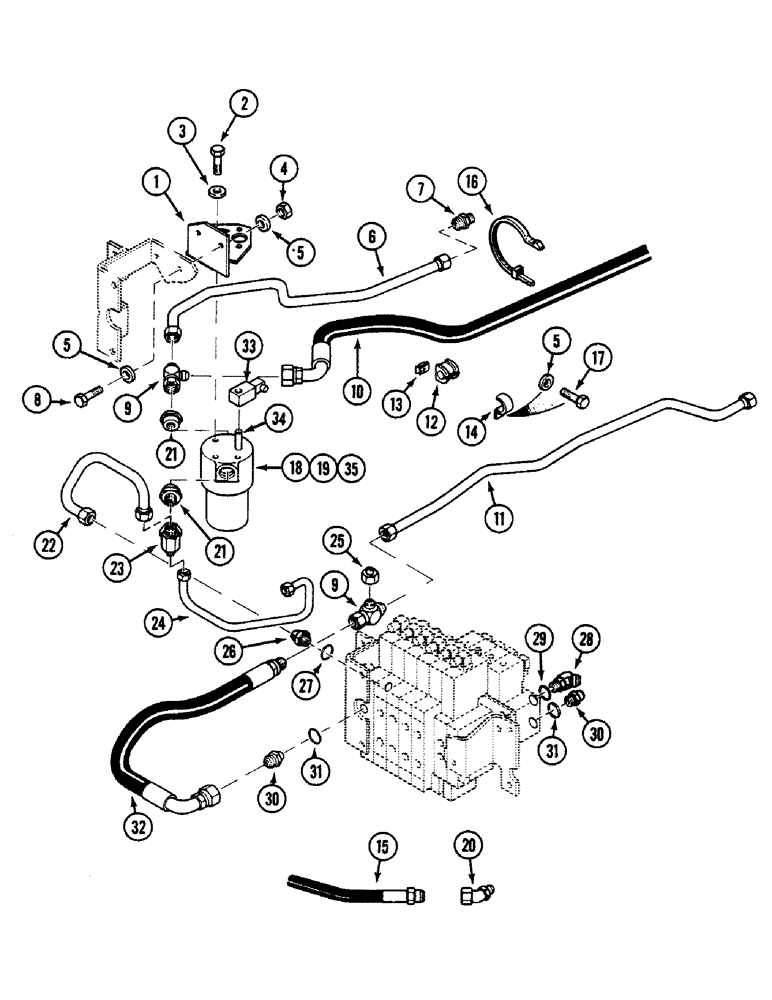

Запчасти Case 580SK (8-036) - BASIC HYDRAULIC LOWER, PRESTIGE VERSION, UP TO S/N JJH0016873 (08) - HYDRAULICS

1

E47424

SUPPORT

1шт.

2

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

E48739

PIPE

ASSY

1шт.

7

E47397

FITTING

UNION

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Union

2шт.

10

E49553

PIPE

ASSY

1шт.

11

E48968

PIPE

ASSY

1шт.

12

D67279

CLAMP

BLOCK

1шт.

13

D122307

NUT

1шт.

14

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1шт.

15

E49563

HOSE

1шт.

16

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

2шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

E47370

FILTER ASSY

BODY Includes : 33,34,35

1шт.

19

E47371

FILTER

ELEMENT

1шт.

20

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

UNION 45 deg

1шт.

21

E47419

FITTING

UNION

2шт.

22

E47420

PIPE ASSY.

1шт.

23

218-846

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12 x1 5/16"-12 Fem Sw Br

Union

1шт.

24

E47421

PIPE ASSY.

1шт.

25

E47425

RESTRICTOR

UNION

1шт.

26

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

UNION with 27

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

UNION With : 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Union with 31

2шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

32

E47749

HOSE

ASSY

1шт.

33

E48887

INDICATOR

Mechanical

1шт.

34

E48888

INDICATOR

Electrical

1шт.

35

E48889

SEAL PACKAGE

1шт.
