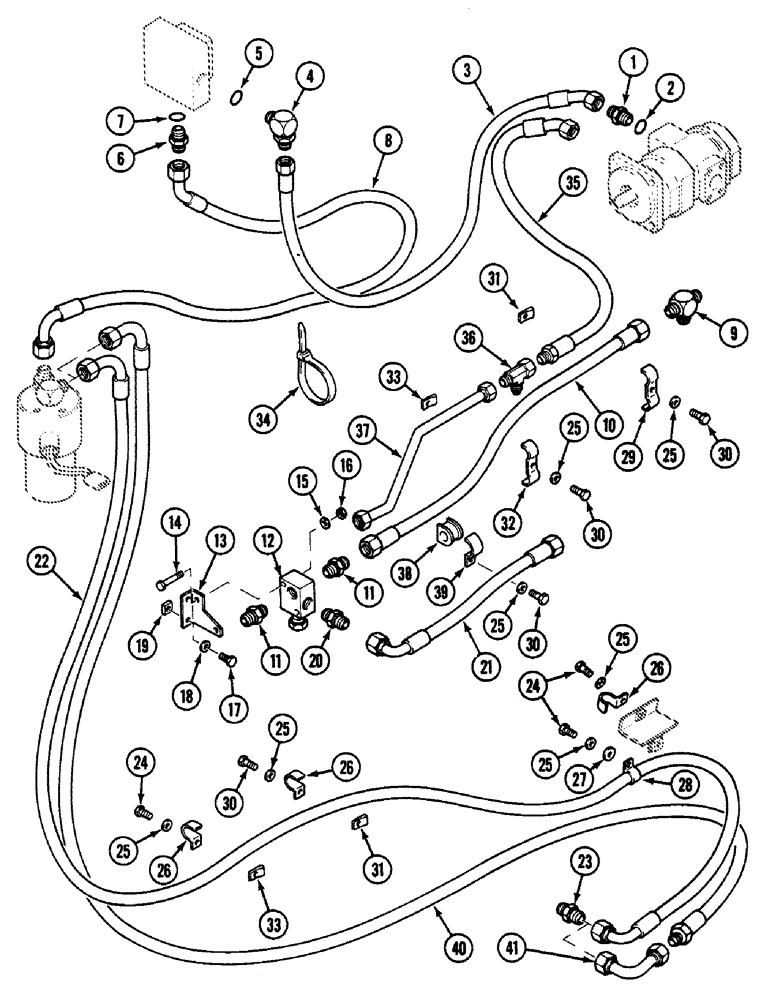

Запчасти Case 580SK (8-032) - BASIC HYDRAULICS, LOWER, SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER With : 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

113397A1

HOSE

ASSY

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

113395A1

HOSE

ASSY See Figure : 8-40

1шт.

9

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

See Figure : 8-40, Serial Range: JJH0046382-JJH0047171

1шт.

10

114624A1

HOSE

ASSY, Serial Range: JJH0046382-JJH0047171

1шт.

11

E47397

FITTING

UNION

2шт.

12

128475A1

VALVE POPPET

ASSY

1шт.

13

111428A1

SUPPORT

1шт.

14

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1/4" x 50 mm

2шт.

15

492-11025

LOCK WASHER,1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

2шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

18

492-11031

LOCK WASHER,5/16"

2шт.

19

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

20

E47414

FITTING

ADAPTER

1шт.

21

114623A1

HOSE

ASSY

1шт.

22

114627A1

HOSE

ASSY, Serial Range: JJH0046382-JJH0047171

1шт.

23

119700A1

FITTING

ADAPTER

1шт.

24

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

25

492-11038

LOCK WASHER,3/8"

5шт.

26

E49805

CLAMP

3шт.

27

495-21044

WASHER,3/8"

1шт.

28

E49858

CLAMP

1шт.

29

E49847

CLAMP

1шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

31

D122307

NUT

3/8"

2шт.

32

E49856

CLAMP

, Serial Range: JJH0046382-JJH0047171

1шт.

33

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

35

128757A1

HOSE

, Start Serial: JJH0047172

1шт.

36

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Elbow, Start Serial: JJH0047172

1шт.

37

128759A1

PIPE

, Start Serial: JJH0047172

1шт.

38

D67297

BLOCK

SUPPORT, Start Serial: JJH0047172

1шт.

39

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

, Start Serial: JJH0047172

1шт.

40

129377A1

PIPE

ASSY, Start Serial: JJH0047172

1шт.

41

129376A1

PIPE

, Start Serial: JJH0047172

1шт.
