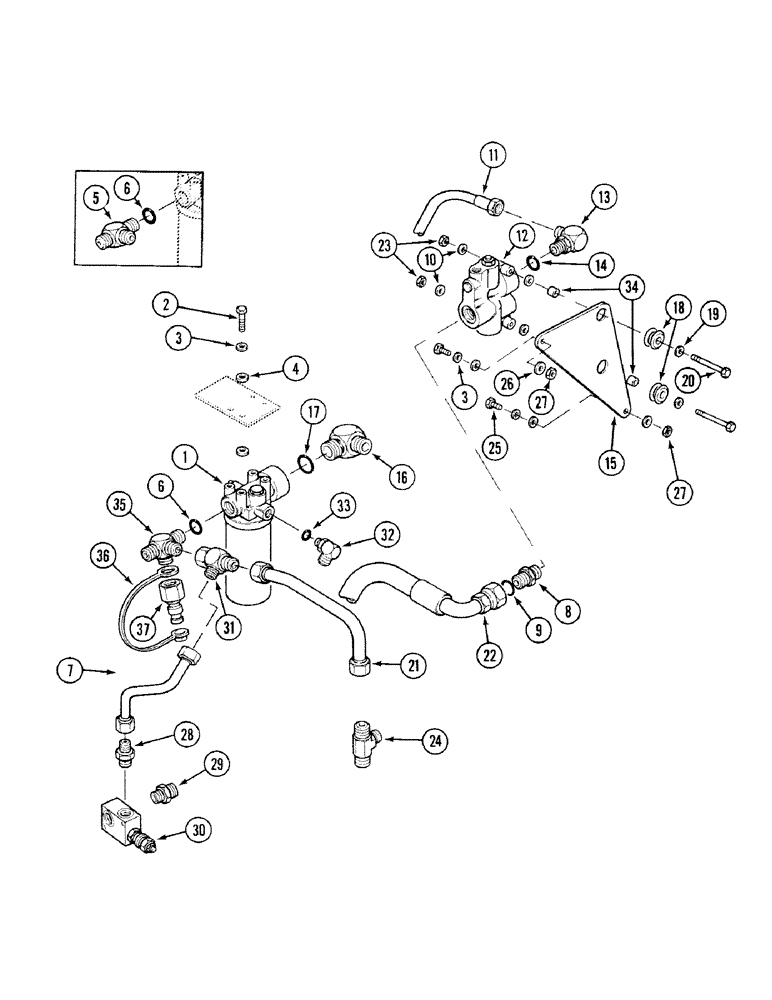

Запчасти Case 580SK (8-026) - BASIC HYDRAULIC LOWER, PRESTIGE VERSION, UP TO S/N JJH0046381 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
D132933
FILTER ASSY
See Figure : 8-340
1шт.
2
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
4шт.
3
492-11038
LOCK WASHER,3/8"
6шт.
4
495-21044
WASHER,3/8"
4шт.
5
218-5245
TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
UNION With : 6 Without Rear Hydraulics
1шт.
7
E48976
PIPE
ASSY
1шт.
8
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
UNION With : 9
1шт.
9
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
11
E49553
PIPE
ASSY
1шт.
12
E47297
VALVE, CONTROL
1шт.
13
218-5119
ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
With 14
1шт.
14
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
15
E49535
LARGE PLATE
PLATE, LARGE
1шт.
16
218-5275
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring
UNION 90 deg With : 17
1шт.
17
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
1шт.
18
D132895
GROMMET
1шт.
19
E49855
WASHER
5/16"
4шт.
20
413-564
BOLT,Hex, 5/16" - 18 x 4", Gr 5
5/16 x 102 mm
4шт.
21
E48972
PIPE
ASSY
2шт.
22
E49552
PIPE
1шт.
23
425-105
NUT,5/16"-18, G5
1шт.
24
218-587
TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br
UNION
2шт.
25
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
26
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
4шт.
27
84899
SQUARE NUT,Sq, 3/8"-16, G2
2шт.
28
E47414
FITTING
UNION
1шт.
29
E47397
FITTING
UNION
1шт.
30
128475A1
VALVE POPPET
1шт.
31
218-5216
TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12
Union
1шт.
32
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Union, With 33
1шт.
33
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
34
E49854
SPACER
2шт.
35
E55011
FITTING
With : 6 With Rear Hydraulics
12шт.
36
H434163
DUST CAP
Plug
1шт.
37
D137625
QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID
1шт.
Выбрано товаров: 37
