(8-024) - LOADER, HYDRAULIC CIRCUIT, PRESTIGE VERSION, UP TO S/N JJH0046381

Запчасти Case 580SK (8-024) - LOADER, HYDRAULIC CIRCUIT, PRESTIGE VERSION, UP TO S/N JJH0046381 (08) - HYDRAULICS

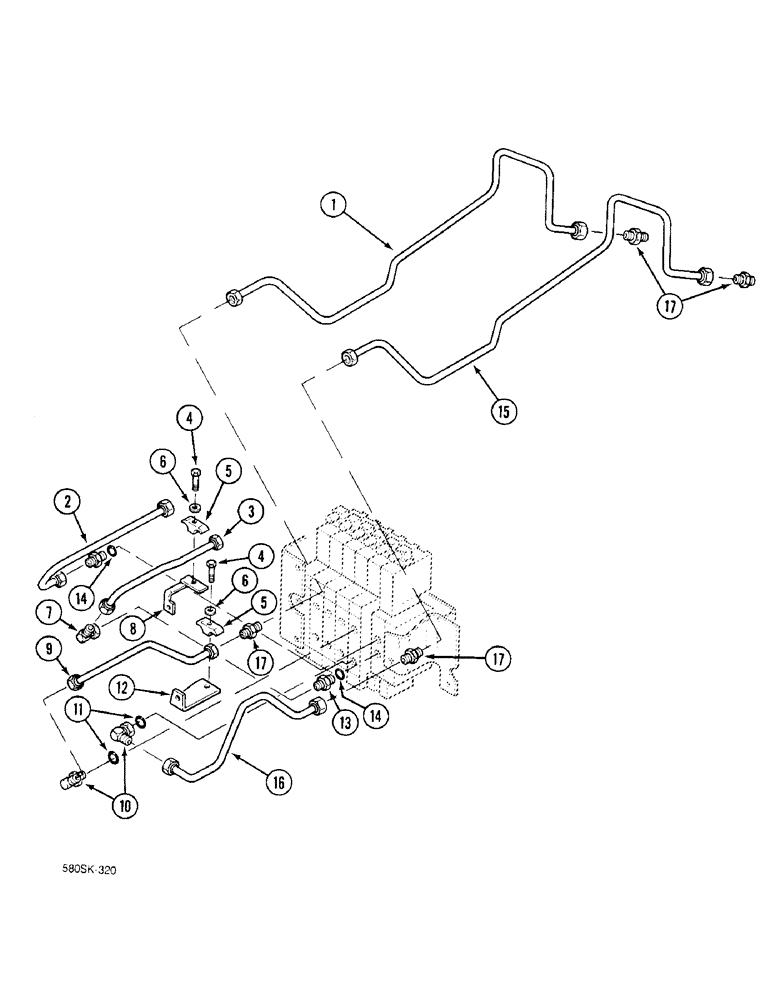

Схема запчастей Case 580SK - (8-024) - LOADER, HYDRAULIC CIRCUIT, PRESTIGE VERSION, UP TO S/N JJH0046381 (08) - HYDRAULICS
17
2
11
17
14
4
7
10
9
12
14
17
1
15
16
13
5
4
6
3
5
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E48996

PIPE

ASSY Left

1шт.

2

E49504

PIPE

ASSY

1шт.

3

E49506

PIPE

ASSY

1шт.

4

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8 x 19 mm

2шт.

5

D120613

CLAMP,20mm ID

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

8

E47605

SUPPORT

1шт.

9

E49508

PIPE

ASSY Left

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Union, With 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

12

E47606

SUPPORT

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION With : 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

15

E49488

PIPE

Right

1шт.

16

E47447

PIPE ASSY.

ASSY Right

1шт.

17

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION

4шт.
