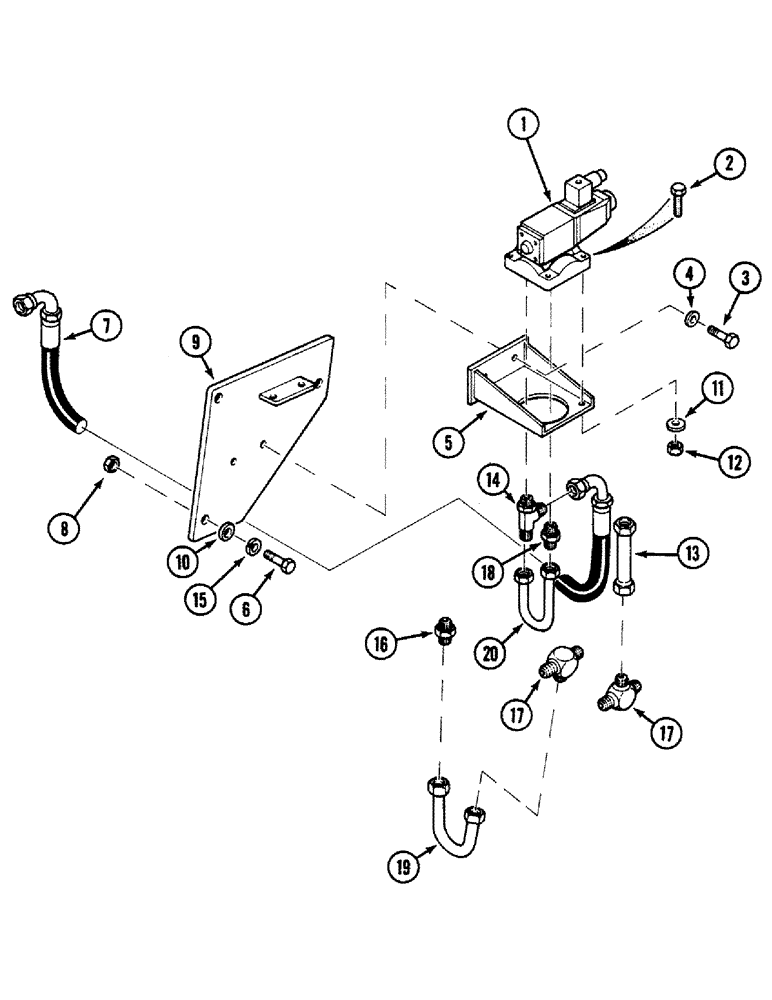

Запчасти Case 580SK (8-022) - VALVE LOADER FLOATATION AND CONNECTIONS, PRESTIGE VERSION, UP TO S/N JJH0046381 (08) - HYDRAULICS

1

E47567

SOLENOID VALVE

1шт.

2

814-5030

BOLT,Hex, M5 x 0.8 x 30mm, Cl 8.8

4шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

4

492-11025

LOCK WASHER,1/4"

2шт.

5

E47350

SUPPORT

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

7

E49536

HOSE

1шт.

8

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

9

E48993

LARGE PLATE

PLATE, LARGE SUPPORT

1шт.

10

495-21044

WASHER,3/8"

3шт.

11

492-11010

LOCK WASHER,#10

4шт.

12

825-1405

NUT,M5, Cl 8

4шт.

13

E49551

PIPE

1шт.

14

E47382

TEE

1шт.

15

492-11038

LOCK WASHER,3/8"

3шт.

16

E49564

FITTING

UNION

2шт.

17

218-595

TEE,7/8"-14, 37 Degree

TEE

1шт.

18

E47381

FITTING

UNION

1шт.

19

E49550

PIPE

1шт.

20

E47383

PIPE ASSY.

1шт.
