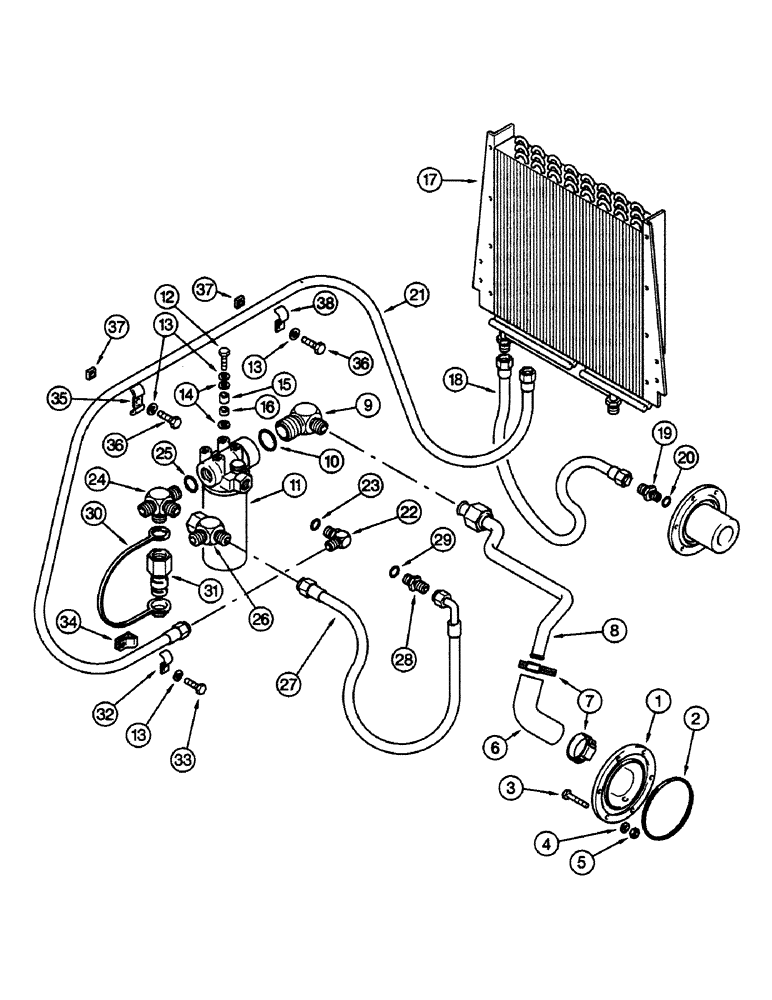

Запчасти Case 580SK (8-018) - OIL COOLER, SERVOPOWER VERSION, S/N JJH0046382 AND UP (08) - HYDRAULICS

1

D125694

FLANGE

, Serial Range: JJH0046382-JJH0047171

1шт.

1

D139268

SHOULDER

FLANGE, Start Serial: JJH0047172

1шт.

2

238-5425

O-RING,0.275" Thk x 4.475" ID, -425, Cl 5, 75 Duro

1шт.

3

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

4

492-11025

LOCK WASHER,1/4"

6шт.

5

425-104

NUT,1/4"-20, Cl 5

6шт.

6

D146034

HOSE

Oil Return

1шт.

7

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

8

D148657

PIPE

Oil Return

1шт.

9

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

90 deg With : 10

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

11

D132933

FILTER ASSY

See Figure : 8-340

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

492-11038

LOCK WASHER,3/8"

5шт.

14

495-81267

WASHER,.469" x 1 1/2" x .134"

3/8"

4шт.

15

D76209

SPACER

2шт.

16

D132895

GROMMET

2шт.

17

A184190

COOLER

1шт.

18

E48135

HOSE

Return

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

With : 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

E49781

HOSE

By-Pass

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

With 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

E55011

FITTING

With : 25

1шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

27

114628A1

HOSE

1шт.

28

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

NUT Tube with 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

H434163

DUST CAP

Plug

1шт.

31

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

32

E49805

CLAMP

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

34

D122307

NUT

3/8 in

1шт.

35

E49856

CLAMP

1шт.

36

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

37

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

38

E49857

CLAMP

1шт.
