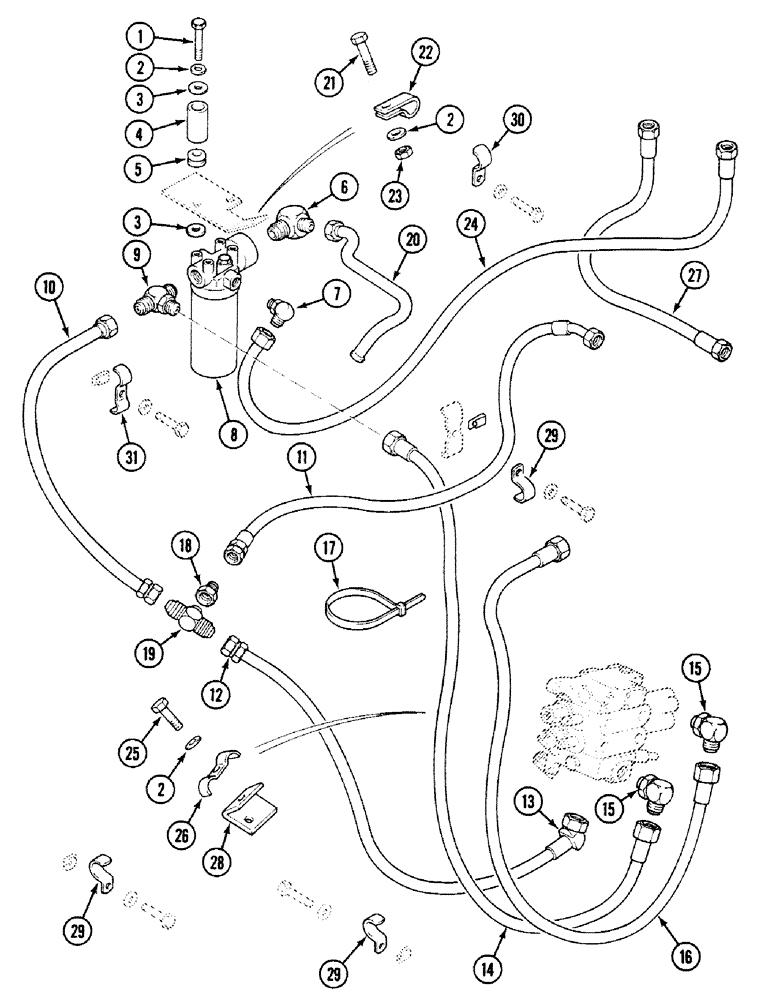

Запчасти Case 580SK (8-012) - HYDRAULIC CIRCUIT, WITHOUT BACKHOE, S/N JJH0016105 AND UP (08) - HYDRAULICS

1

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

2

492-11038

LOCK WASHER,3/8"

4шт.

3

495-81267

WASHER,.469" x 1 1/2" x .134"

2шт.

4

D76209

SPACER

2шт.

5

D132895

GROMMET

2шт.

6

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

8

D132933

FILTER ASSY

See Figure : 8-340

1шт.

9

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

TEE

1шт.

10

E49778

HOSE

ASSY

1шт.

11

E49779

HOSE

ASSY

1шт.

12

E49776

HOSE

ASSY

1шт.

13

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

14

E49777

HOSE

ASSY

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

2шт.

16

E49780

HOSE

ASSY

1шт.

17

D140236

STRAP

1шт.

18

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

1шт.

19

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1шт.

20

D148657

PIPE

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

E49858

CLAMP

2шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

E49781

HOSE

ASSY Inlet

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

26

E49806

CLAMP

1шт.

27

E48135

HOSE

ASSY Return

1шт.

28

E49838

LARGE PLATE

PLATE, LARGE

1шт.

29

E49805

CLAMP

1"

3шт.

30

E49857

CLAMP

5/8"

1шт.

31

E49847

CLAMP

3/4"

3шт.
