(8-010) - CIRCUIT HYDRAULIC WITHOUT BACKHOE, UP TO S/N JJH0016104

Запчасти Case 580SK (8-010) - CIRCUIT HYDRAULIC WITHOUT BACKHOE, UP TO S/N JJH0016104 (08) - HYDRAULICS

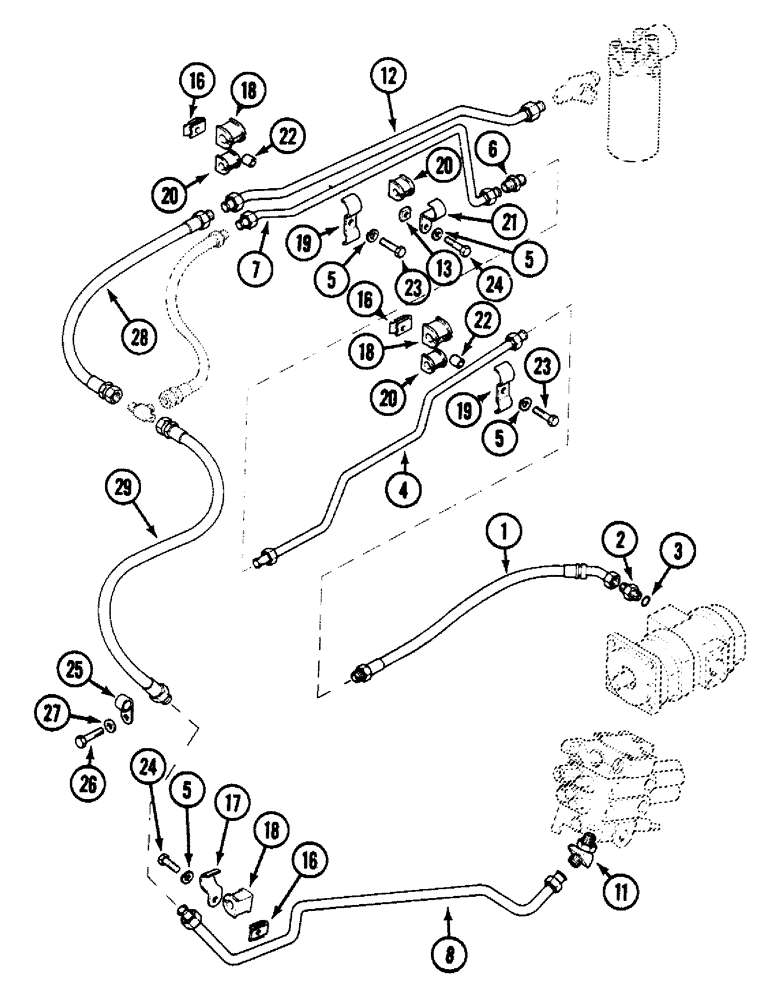

Схема запчастей Case 580SK - (8-010) - CIRCUIT HYDRAULIC WITHOUT BACKHOE, UP TO S/N JJH0016104 (08) - HYDRAULICS
5
18
22
12
17
18
16
24
25
5
27
24
20
16
29
26
23
20
20
22
2
19
16
6
3
19
28
5
21
11
8
18
23
5
7
1
4
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D140802

HOSE

Outlet

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER With : 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

E48890

PIPE

1шт.

5

492-11038

LOCK WASHER,3/8"

5шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

7

D149934

PIPE

1шт.

8

D149899

PIPE

1шт.

11

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ELBOW 45 deg

1шт.

12

D149936

PIPE

1шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

16

D122307

NUT

3/8"

3шт.

17

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1шт.

18

D67297

BLOCK

INSULATOR

3шт.

19

D133675

CLAMP

2шт.

20

D74182

GROMMET,3/4" ID x 1.46" L

INSULATION

2шт.

21

D74192

CLAMP

P

1шт.

22

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

23

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8 x 28 mm

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

D34163

CLAMP

1шт.

26

828-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9

M16 x 50 mm

1шт.

27

96-81009

WASHER,11/16" x 1 1/2" x .134", HDN

1шт.

28

D136968

HOSE

Return

1шт.

29

D136966

HOSE

Primary Inlet

1шт.
