(8-006) - EQUIPMENT HYDRAULIC SYSTEM WITH BACKHOE, UP TO S/N JJH0016104

Запчасти Case 580SK (8-006) - EQUIPMENT HYDRAULIC SYSTEM WITH BACKHOE, UP TO S/N JJH0016104 (08) - HYDRAULICS

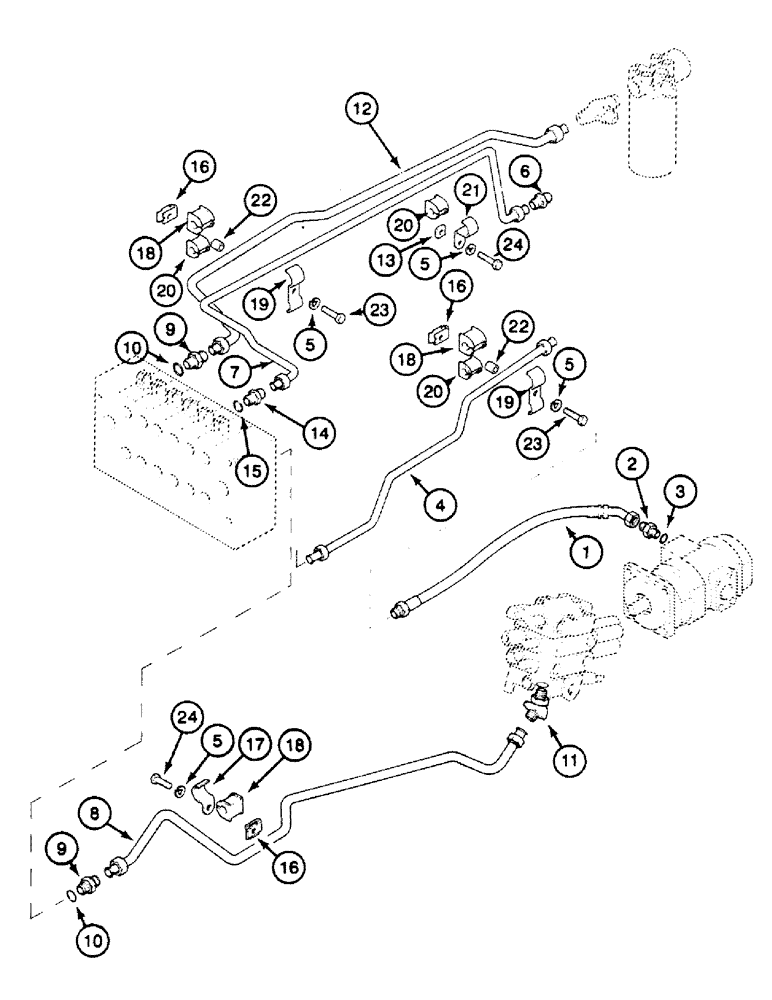

Схема запчастей Case 580SK - (8-006) - EQUIPMENT HYDRAULIC SYSTEM WITH BACKHOE, UP TO S/N JJH0016104 (08) - HYDRAULICS
18
3
8
9
11
15
5
18
20
22
18
4
24
17
6
20
9
5
5
16
5
1
21
14
16
23
24
19
10
22
13
7
20
2
23
10
12
16
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D140802

HOSE

513 mm Outlet

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER With : 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

E48890

PIPE

Outlet

1шт.

5

492-11038

LOCK WASHER,3/8"

5шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR

1шт.

7

D149194

PIPE

1шт.

8

D149751

PIPE

Outlet

1шт.

9

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter with 10

2шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 deg

1шт.

12

D148649

PIPE

6 Spool

1шт.

12

D148677

PIPE

7 Spool

1шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

14

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER With : 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

D122307

NUT

3/8"

3шт.

17

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1шт.

18

D67297

BLOCK

INSULATOR

3шт.

19

D133675

CLAMP

1шт.

20

D74182

GROMMET,3/4" ID x 1.46" L

INSULATION

1шт.

21

D74192

CLAMP

1шт.

22

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

23

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8 x 28 mm

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
