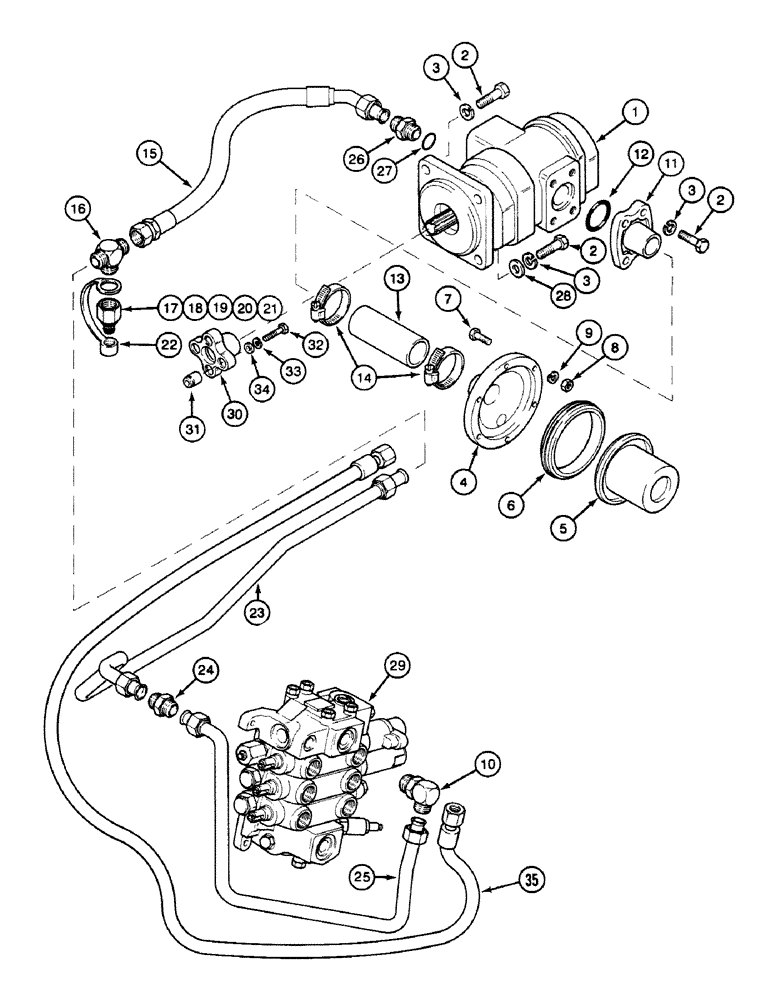

Запчасти Case 580SK (8-002) - EQUIPMENT HYDRAULIC SYSTEM (08) - HYDRAULICS

1

D140801

PUMP, HYDRAULIC

ASSY See Figure : 8-344

1шт.

D140801R

REMAN-HYD PUMP

580SK

1шт.

D140801C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

4

D129581

FLANGE

1шт.

5

D145017

STRAINER ASSY.

FILTER With : 6

1шт.

6

D145356

SEAL,107.7mm ID x 125.48mm OD x 13.72mm Thk

1шт.

7

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

6шт.

8

425-104

NUT,1/4"-20, Cl 5

6шт.

9

492-11025

LOCK WASHER,1/4"

6шт.

10

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1шт.

11

D137343

FLANGE

Pump Inlet

1шт.

12

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

13

D129580

HOSE

130 mm Pump Inlet

1шт.

14

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

15

E48118

HOSE

450 mm Outlet Port See Page : 8-35

1шт.

16

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Quick Disconnect Consists of 17 - 21

1шт.

17

BODY

1шт.

18

129-132

NUT,1 1/4"-12, G5

1шт.

19

SEAT

1шт.

20

SPRING

1шт.

21

POPPET

1шт.

22

H434163

DUST CAP

1шт.

23

D148651

PIPE

Inlet, Serial Range: -JJH0016104

1шт.

24

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR, Serial Range: -JJH0016104

1шт.

25

D148653

PIPE

Inlet, Serial Range: -JJH0016104

1шт.

26

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter with 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

D64050

WASHER

1/2"

2шт.

29

VALVE ASSY See Figure : 8-316

1шт.

D136083

COUPLING

With : 30,31

1шт.

30

COUPLING

1шт.

31

N14330

BUSHING,11.38mm ID x 25.15mm OD x 23.11mm L

4шт.

32

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

33

492-11044

LOCK WASHER,7/16"

4шт.

34

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

35

E49780

HOSE

, Serial Range: JJH0016105-JJH0046381

1шт.

35

114624A1

HOSE

, Serial Range: JJH0046382-JJH0047171

1шт.

35

128759A1

PIPE

, Start Serial: JJH0047172

1шт.
