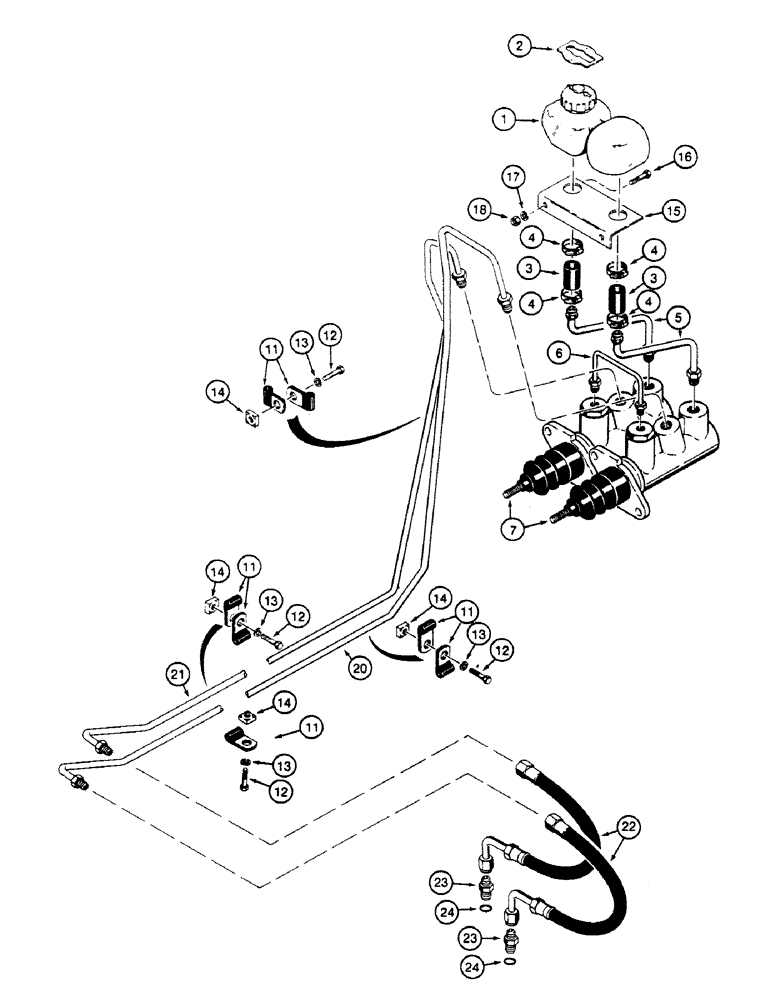

Запчасти Case 580SK (7-08) - BRAKE MASTER CYLINDER HYDRAULIC CIRCUIT (07) - BRAKES

E46719

RESERVOIR

Consists of : 1,2

1шт.

1

E44082

RESERVOIR

Replaced by K262942

1шт.

1

K262942

RESERVOIR

1шт.

2

E44062

TAG

1шт.

3

E44083

HOSE

13 x 30 mm

2шт.

4

D140877

HOSE CLAMP,#6, 0.44/0.78 Type M Worm

4шт.

5

D136854

TUBE

2шт.

6

D136430

TUBE

1шт.

7

D143162

MASTER CYLINDER

CYLINDER,MASTER See Figure : 7-10

2шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

8шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

492-11031

LOCK WASHER,5/16"

4шт.

14

25-225

SQUARE NUT,Sq, 5/16"-24

5/16"

4шт.

15

D135229

BRACKET

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

20

D146723

PIPE ASSY.

Right

1шт.

21

D146725

PIPE ASSY.

Left

1шт.

22

D147572

HOSE,6.35mm ID x 385mm L

285 mm

2шт.

23

218-5088

HYD CONNECTOR,7/16" - 20 Male JIC x 1/2" - 20 Male ORB

ADAPTER With : 24

2шт.

24

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
