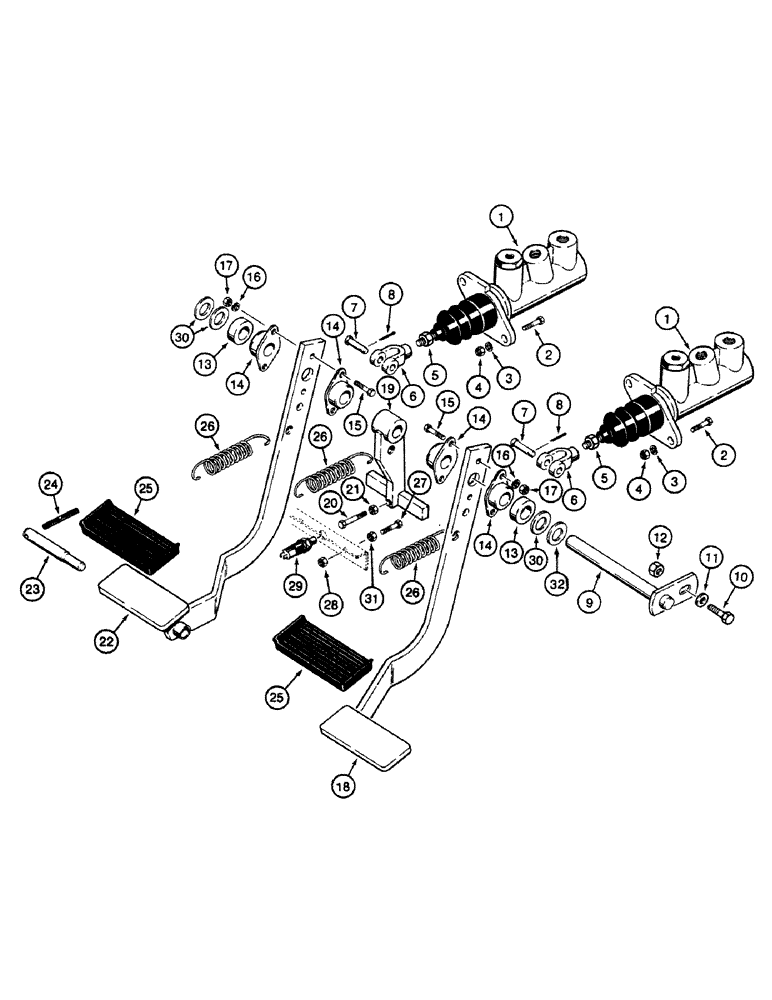

Запчасти Case 580SK (7-06) - BRAKE PEDALS AND BRAKE MASTER CYLINDER MOUNTING (07) - BRAKES

1

D143162

MASTER CYLINDER

CYLINDER,MASTER See Figure : 7-10

2шт.

2

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

492-11031

LOCK WASHER,5/16"

4шт.

4

9635082

NUT,5/16" - 18, Gr 5

4шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

3/8"

2шт.

6

D137077

CLEVIS

2шт.

7

L26209

PIN,11.07mm OD x 39.75mm L

3/8"

2шт.

8

132-26

COTTER PIN

2 x 19 mm

2шт.

9

D140035

SHAFT,180mm L

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

11

195-25

WASHER,3/8"

1шт.

12

131-218

LOCK NUT,3/8"-16, GB

1шт.

13

D124529

SPACER,19.5mm ID x 35mm OD x 12mm Thk

2шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BEARING

4шт.

15

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

17

9635082

NUT,5/16" - 18, Gr 5

4шт.

18

D124521

PEDAL

Right

1шт.

19

D124528

LEVER

Brake Lamp

1шт.

20

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

1шт.

22

D124522

PEDAL

Left

1шт.

23

D124530

PIN,15.85mm OD x 111mm L

1шт.

24

138-328

LOCK PIN,5/16" x 2 1/2", Slotted

(8 x 64 mm)

1шт.

25

F9197

PAD

COVER

2шт.

26

D120911

SPRING

3шт.

27

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

4шт.

29

D128886

SWITCH

Brake Lamp

1шт.

30

195-2191

WASHER,13/16" x 1 1/2" x .067", HDN

er

1шт.

31

25-145

JAM NUT,Jam, 5/16"-18, G5

5/16"

1шт.

32

E48886

BAND

SEAL

1шт.
